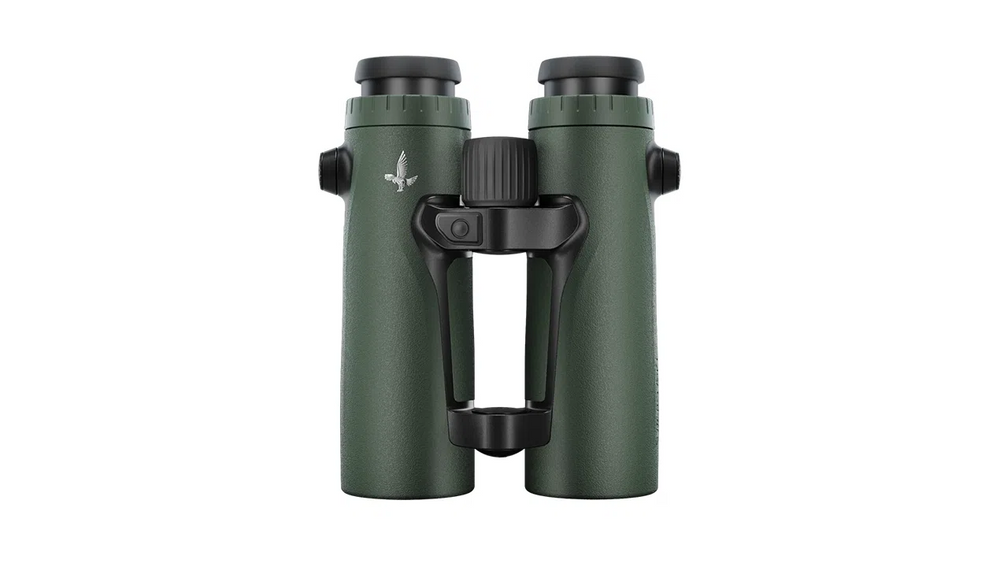

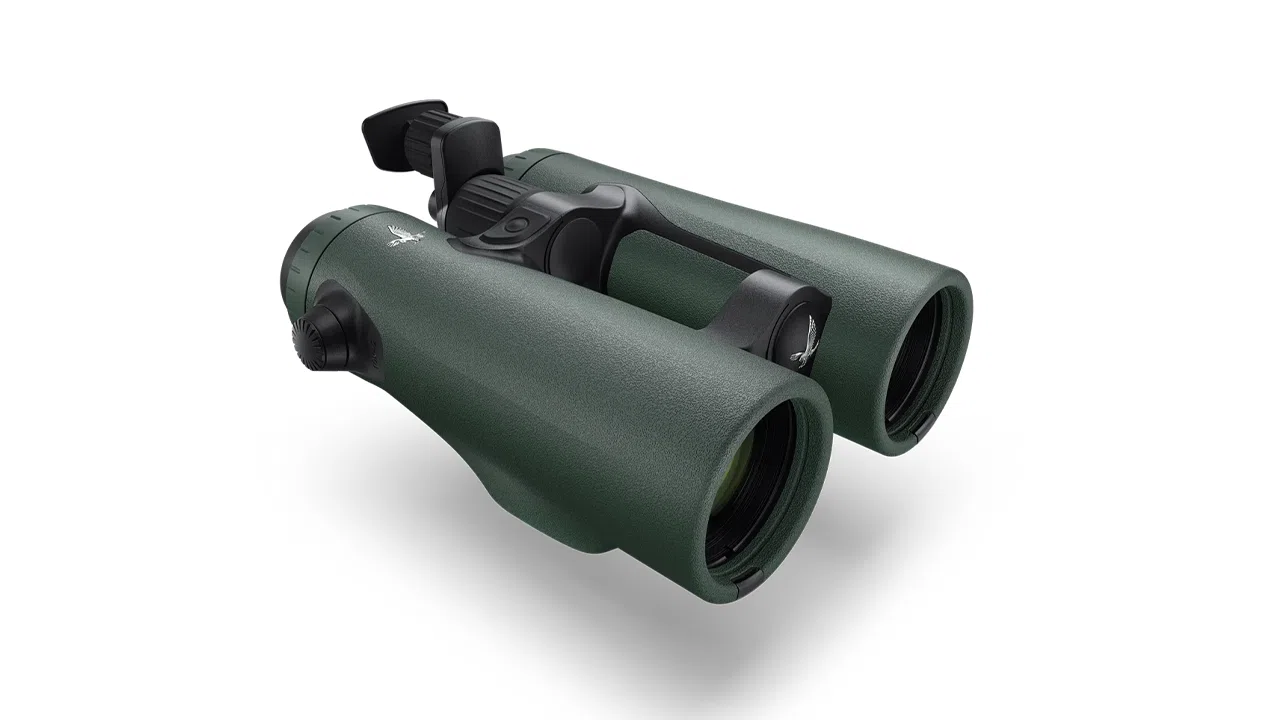

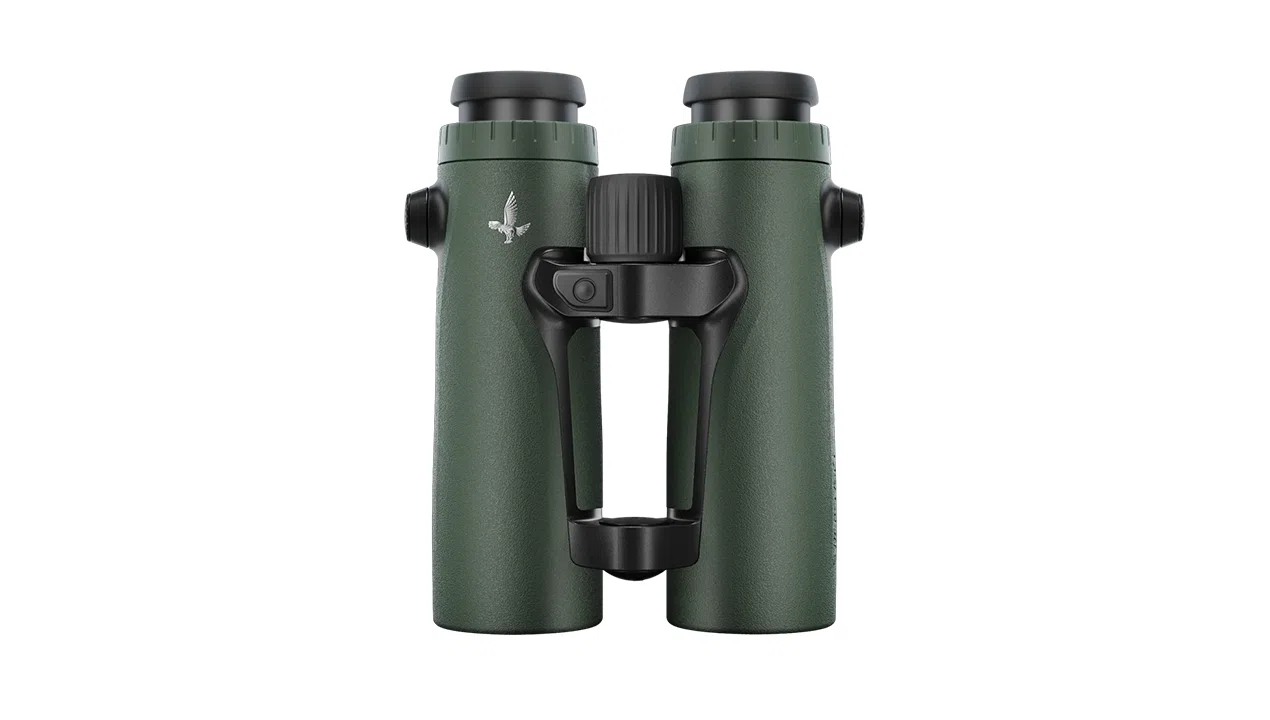

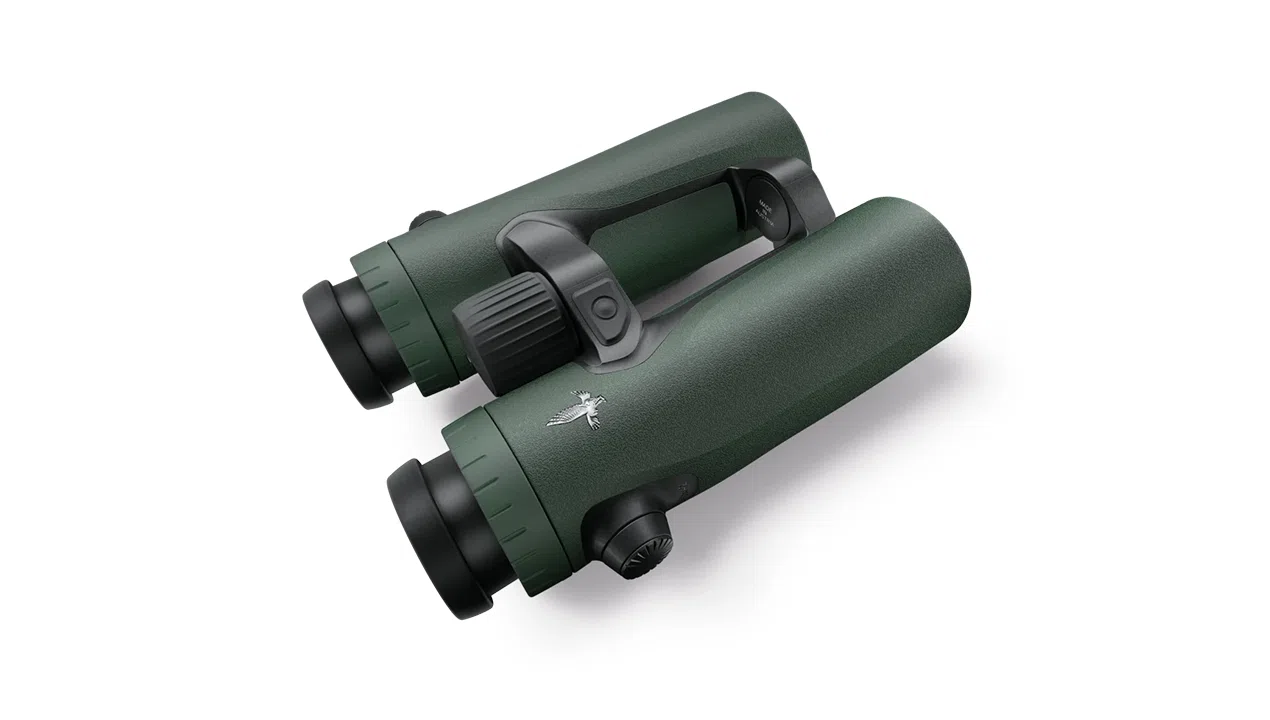

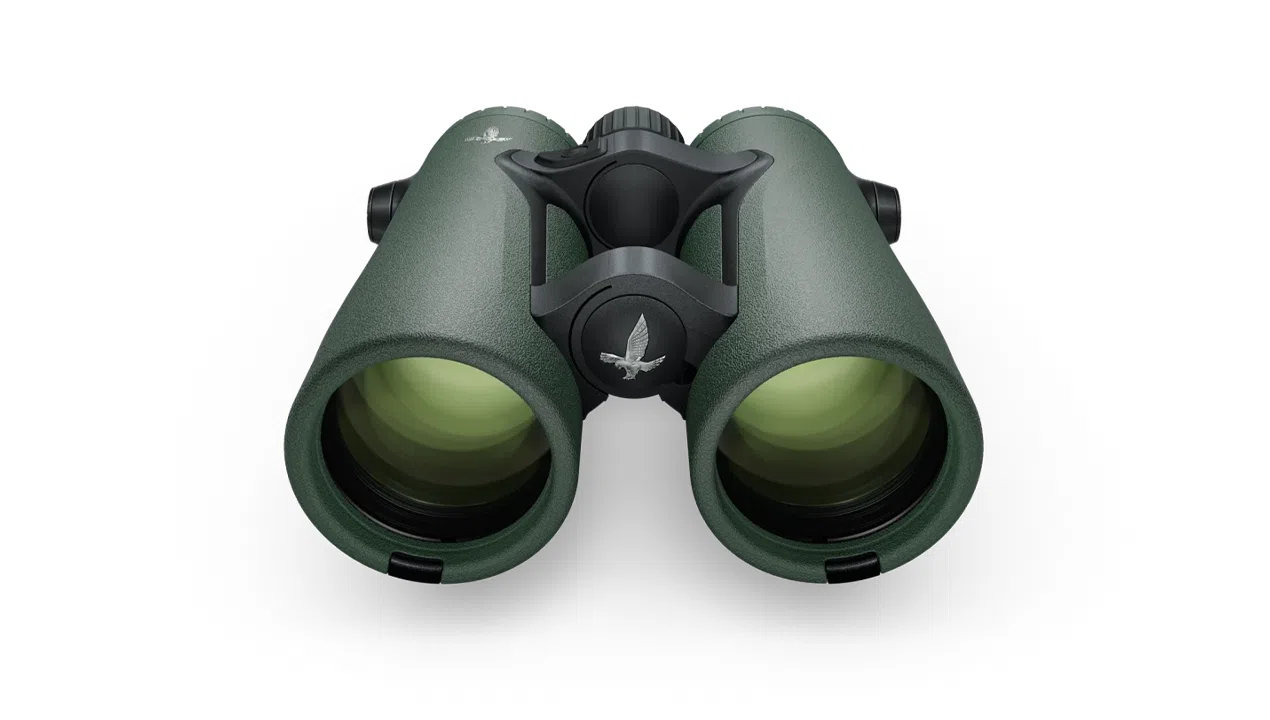

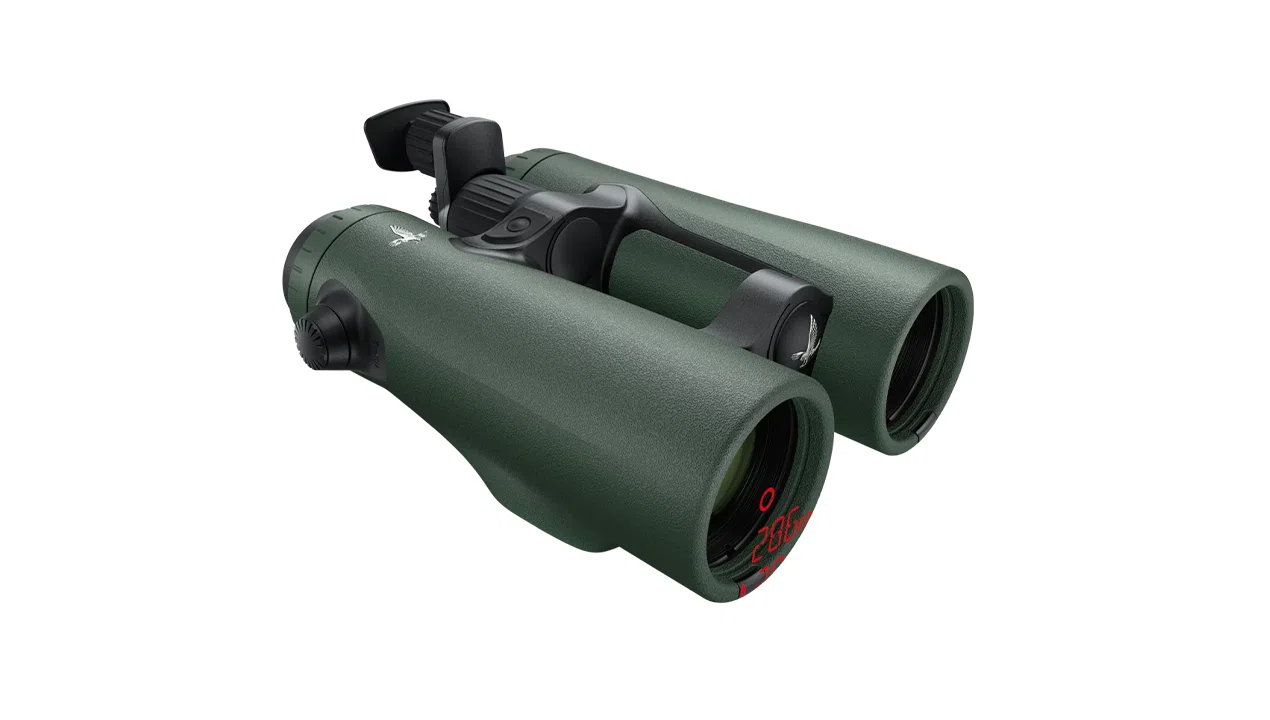

Swarovski EL 10x42 2000 Meters Rangefinder Binoculars- EL1042RTA (Range Green)
The EL RANGE is the latest demonstration of the innovativeness that lies at the heart of SWAROVSKI OPTIK. It combines SWAROVISION technology with precise range measurement. Spot game quickly and accurately thanks to the precision and edge-to-edge sharpness of SWAROVISION technology. The EL Range can...
- R 74,949.00
- R 74,949.00
- Unit price
- per
The EL RANGE is the latest demonstration of the innovativeness that lies at the heart of SWAROVSKI OPTIK. It combines SWAROVISION technology with precise range measurement. Spot game quickly and accurately thanks to the precision and edge-to-edge sharpness of SWAROVISION technology. The EL Range can be configured to suit your specific needs and you can transfer your own ballistics data, along with air pressure and temperature readings, allowing you to make an accurate assessment of every hunting situation. The innovative tracking assistant helps you to narrow down the area where your last shot hit the target. Uncompromising observation. The EL Range 10x42 shows precise details when viewing over long distances thanks to its 10x magnification.
COLOUR
Green
OBJECTIVE
10 -
Magnification
42 mm -
Effective objective lens diameter
4.2 mm -
Exit pupil diameter
19mm - E
xit pupil distance
120 m/1000m -
Field of view at m/1,000 m / ft/1,000 yds
6.8 ° -
Field of view degrees
6.8 ° -
Field of view with eye glasses (°)
61 ° -
Field of view apparent
5 m -
Shortest focusing distance
5 dpt -
Diopter adjustment
90 % -
Light transmission
56-74 mm -
Pupil distance
20.5 -
Twilight factor acc. to ISO 14132-1
SIZE & WEIGHT
169 mm -
Length in mm.
136 mm -
Width in mm.
79 mm -
Height in mm.
925 g -
Weight
ENVIRONMENT & CONDITIONS
-25 to +55 / -10 to +55 °C
MEASUREMENT
10 - 2000 m -
Measuring range in yds./ m.
1 m -
Measuring accuracy in yds./ m.
≤ 0.5 s -
Measuring time
± 90 ° -
Angular measurement
Class 1 EN/FDA -
Laser
Yard / Meter -
Units
2,000 measurements -
Life cycle
DIGITAL
CR2 -
Battery
SWAROVSKI OPTIK
EL RANGE CONFIGURATOR APP
It’s easy to customize your EL Range with Tracking Assistant. Transfer your personal ballistics data of your SWAROVSKI OPTIK rifle scope directly via the app, and you can even use it on your smartphone.
Download for iOS
Download for Android
Scope of delivery
- FSB functional sidebag
- UCS-R universal comfort strap with battery compartment
- Eyepiece cover
- Objective lens cover
- BT tool
- Soap & Brush
Instruction manual EL Range TA
(PDF 20.7 MB)
Technical data EL Range TA BANr.: 746-02
(PDF 0.8 MB)
Swarovski Optik Warranty electronic binoculars
(PDF 0.1 MB)
Technical data CEE EL Range TA BANr.: 746-04-CEE
(PDF 0.5 MB)
Change to General Information EL Range 32/42
(PDF 0.1 MB)
WHAT TO CONSIDER WHEN CHOOSING YOUR BINOCULARS
MAGNIFICATION The magnification specifies the factor by which an object appears to be closer in comparison with the actual distance. The higher the magnification, the closer the object seems to be. However, a higher magnification also means a smaller field of view. Check the precise product name as the number in front of the ‘x’ specifies the magnification. For example, 10x42 is a device with 10x magnification. FIELD OF VIEW The field of view describes the size of the image section that can be seen through the optics. This is specified either in meters (width) at a distance of 1000 meters (m/1000m), or feet (width) at a distance of 1000 yards (ft/1000 yds), or as an angle (degrees). The higher the magnification, the smaller the field of view. Binoculars have a large field of view, which means you can see a wide area. Spotting scopes have a higher magnification, which makes the field of view much smaller, but you can see more detail. OBJECT LENS DIAMETER The objective lens diameter specifies how much light can enter the optics. This makes it a key factor in an instrument’s performance, for example, in twilight. The bigger the objective lens diameter, the more light the objective lens can capture. The darker the surroundings, the larger the objective lens diameter needs to be. Check the precise product name as the number after the ‘x’ specifies the objective lens diameter in millimeters. For example, a device with the suffix 10x42 has an objective lens with a diameter of 42 mm. SHORTEST FOCUSING DISTANCE The shortest focusing distance specifies how close an object needs to be to see it clearly with the optics. Between this value and infinity, it is possible to focus the image.Related Products
