Brand: Hikmicro
SKU: TS56-75Q

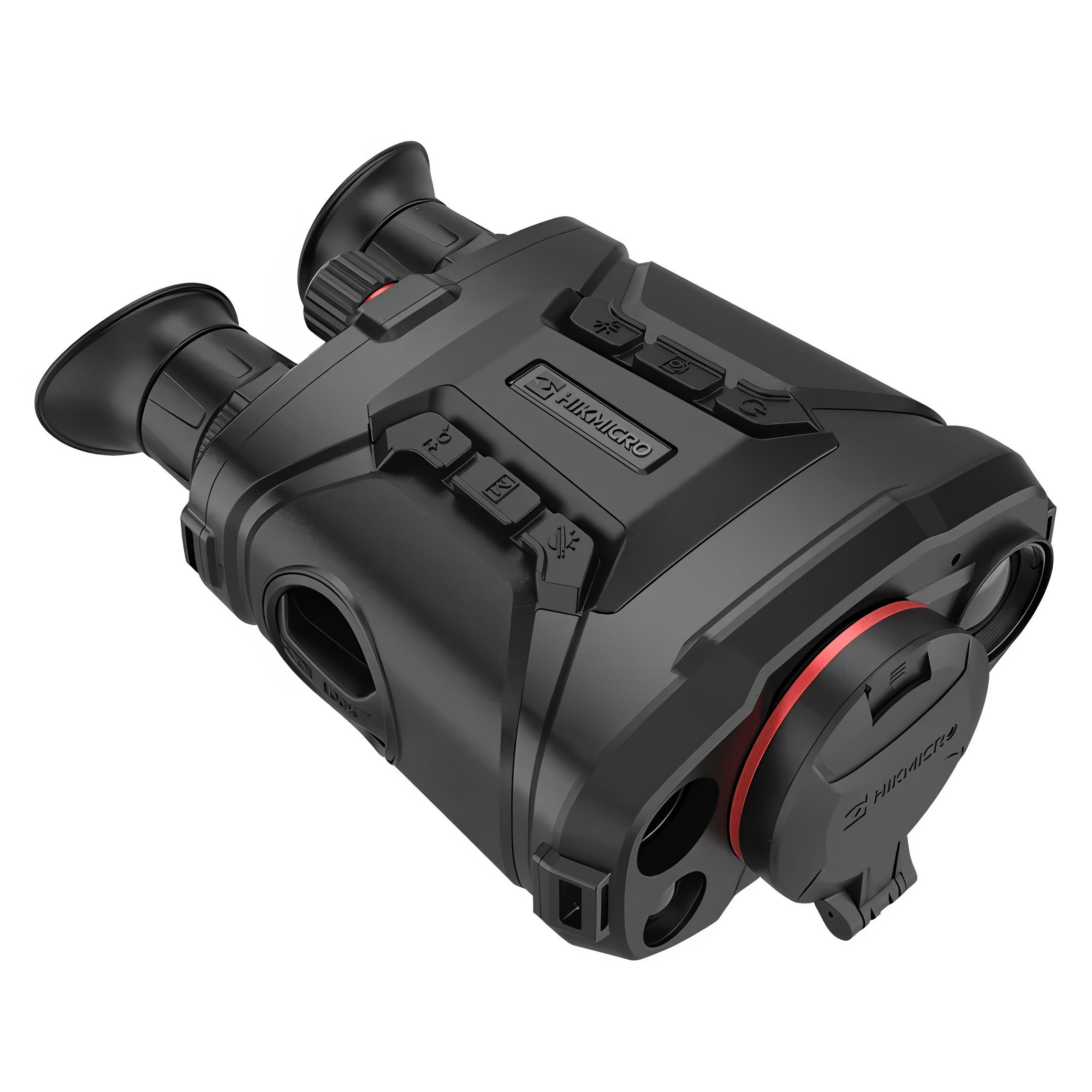

Powerful, multi-sensor, and built for the field, the HIKMICRO Raptor TS56-75Q is a professional-grade handheld binocular system that combines thermal imaging, optical enhancement, and laser rangefinding technology in one rugged body. Featuring a high-performance 640 × 512 thermal sensor with a 12 μm pixel pitch and NETD < 20 mK,...
R 153,159.00

All prices are VAT inclusive | Free delivery over R1,000*

Delivery Estimations

click here to see all delivery times
Hikmicro Raptor TS56-75Q Multi-Spectrum Binoculars

Hikmicro Raptor TS56-75Q Multi-Spectrum Binoculars

R 153,159.00
Hikmicro Raptor TS56-75Q Multi-Spectrum Binoculars
Hikmicro Raptor TS56-75Q Multi-Spectrum Binoculars
Hikmicro Raptor TS56-75Q Multi-Spectrum Binoculars
Hikmicro Raptor TS56-75Q Multi-Spectrum Binoculars
Hikmicro Raptor TS56-75Q Multi-Spectrum Binoculars
Hikmicro Raptor TS56-75Q Multi-Spectrum Binoculars

Hikmicro Raptor TS56-75Q Multi-Spectrum Binoculars

R 153,159.00
Description

Powerful, multi-sensor, and built for the field, the HIKMICRO Raptor TS56-75Q is a professional-grade handheld binocular system that combines thermal imaging, optical enhancement, and laser rangefinding technology in one rugged body. Featuring a high-performance 640 × 512 thermal sensor with a 12 μm pixel pitch and NETD < 20 mK, it captures ultra-clear thermal imagery even in extreme weather or low visibility.

Designed for long-range observation and high-precision situational awareness, the Raptor TS56-75Q includes a 75 mm F1.2 thermal lens, 5.1× base magnification, 3,600 m detection range, and dual optical sensors with a 2,560 × 1,440 CMOS module for true low-light color imaging. Integrated GPS, onboard recording, hot spot tracking, and a laser rangefinder with ±1 m accuracy make it an essential device for tactical professionals, search and rescue, law enforcement, and wildlife observation.

Features

THERMAL FUSION BINOCULARS WITH 75MM LENS & 3600M DETECTION RANGE

The HIKMICRO Raptor TS56-75Q delivers exceptional multi-sensor performance by combining advanced thermal imaging, optical clarity, and precision laser ranging into one rugged, handheld device.

Featuring a highly sensitive 640 × 512 thermal detector with a 12 μm pixel pitch and NETD < 20 mK, this binocular delivers outstanding thermal imaging even in the harshest conditions. With a detection range of up to 3,600 meters and 5.1x magnification, it's designed for long-range observation and precision tracking.

HIGH-RES OPTICAL SENSOR & IMAGE FUSION TECHNOLOGY

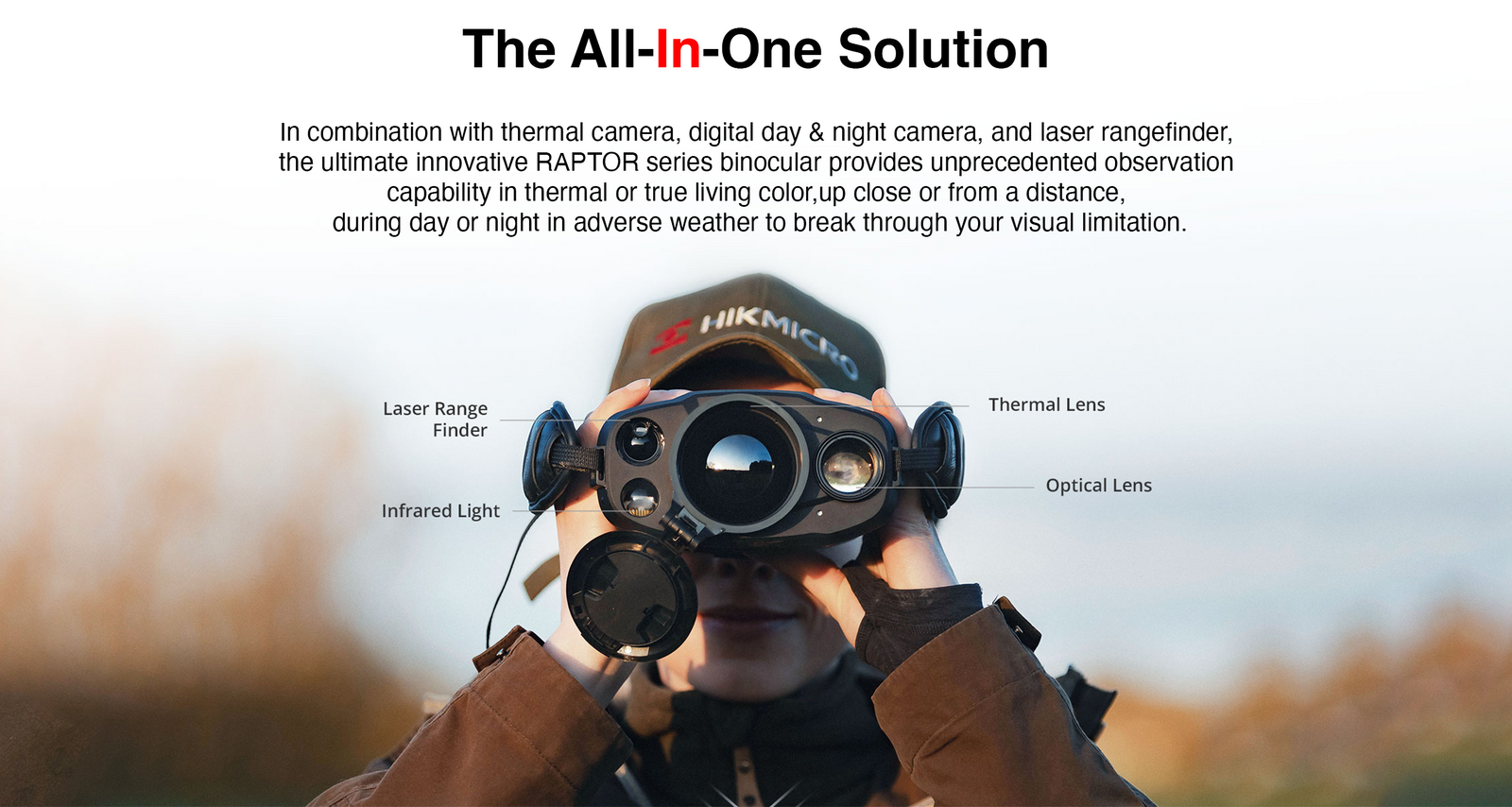

Dual imaging modules enable seamless switching between thermal and optical views, or use both with image fusion mode for enhanced detail and contrast.

The optical module uses a 2,560 × 1,440 CMOS sensor with low-light sensitivity down to 0.001 Lux and F1.2 aperture, providing crisp day and night imagery. The 31mm focal length balances wide field of view and range for situational awareness in all lighting conditions.

INTEGRATED LASER RANGEFINDER WITH ±1M ACCURACY

Precision targeting is made possible with the built-in Class 1 laser rangefinder.

With a measurement range of up to 1,000 meters and ±1 meter accuracy, users can determine exact distances in hunting, tactical, or rescue scenarios, even in total darkness or poor weather.

INTUITIVE OLED DISPLAY & MULTI-MODE OPERATION

View vivid thermal and optical data through the 0.39” OLED display with 1,024 × 768 resolution, offering enhanced contrast and clarity.

Switch effortlessly between Day, Night, Auto, and Defog optical modes. Advanced image modes include Optical, Fusion, White Hot, Black Hot, and Red Hot for versatile visualization of thermal signatures.

ONBOARD GPS, HOTSPOT, RECORDING & ENHANCED CONNECTIVITY

Built-in GPS, digital magnetic compass, hotspot, and HIKMICRO Sight app compatibility offer real-time tracking, wireless streaming, and full location awareness.

Save and share critical moments with onboard 64 GB memory supporting MP4 video recording and JPEG snapshots at 1,600 × 1,200 resolution. Audio recording, PIP mode, and hot tracking further enhance operational efficiency.

ENGINEERED FOR DEMANDING CONDITIONS

With an IP67 waterproof rating and an operating temperature from -30°C to 55°C, the Raptor TS56-75Q is built for rugged field use.

The device is designed for professional use in search and rescue, hunting, tactical operations, and wildlife observation—delivering unparalleled performance in every environment.

LONG BATTERY LIFE & COMPREHENSIVE ACCESSORY KIT

Stay operational longer with up to 8 hours of runtime from its rechargeable Li-ion batteries—even with hotspot mode enabled.

Comes complete with battery charger, power cable, lens cloth, wrist straps, neck strap, quick start guide, batteries, adapter, and a protective carrying case.
Specifications
Product Name HIKMICRO Raptor TS56-75Q 75mm Handheld Thermal Fusion Optical IR LRF Binoculars
Thermal Sensor 640 × 512 Vox Uncooled Focal Plane Arrays
Pixel Pitch 12 μm
NETD < 20 mK (@25°C, F# = 1.0)
Thermal Lens 75 mm, F1.2 Aperture
Thermal Digital Zoom 1×, 2×, 4×, 8×, 16×
Thermal Magnification 5.1×
Detection Range 3,600 m
Thermal FOV @100 m 5.9° × 4.7° / 10.3 m × 8.2 m
Thermal Focusing Distance 7.5 m
Focus Mode Manual
Thermal Frame Rate 25 Hz
Optical Sensor 1.88” Progressive Scan CMOS
Optical Resolution 2,560 × 1,440
Optical Focal Length 31 mm, F1.2 Aperture
Image Enhancement Yes
Minimum Illumination 0.001 Lux @ F1.0, AGC On
Smart IR Yes
IR Illuminator Wavelength 850 nm
Viewing Range at Night 400 m
Display 0.39" OLED, 1,024 × 768
Diopter Range -5 D to +3 D
Display Modes Day, Night, Auto, Defog
Image Modes Optical, Fusion, White Hot, Black Hot, Red Hot
Flat Field Correction Auto, Manual, External Correction
Built-in Memory 64 GB
Video Format MP4, 1,600 × 1,200
Snapshot Format JPEG, 1,600 × 1,200
Audio Recording Yes
PIP Mode Yes
GPS & Compass Yes, with Digital Magnetic Compass
Hotspot & App Support Yes, HIKMICRO Sight
Battery Type Rechargeable Li-ion (Replaceable)
Battery Life 8 hrs (with hotspot on)
Charging Port Type-C
Laser Rangefinder 1,000 m, 905 nm, ±1 m Accuracy
Protection Level IP67
Operating Temp -30°C to 55°C
Storage Temp -40°C to 70°C
Working Humidity < 90%
Interpupillary Range 60 mm to 70 mm
Eye Relief 15 mm
Dimensions 230 × 155 × 88 mm
Weight < 1.45 kg
Mounting Adapter 1/4"-20-UNC
Accessories Included Battery charger, power cable, lens cloth, wrist straps, neck strap, guide, six batteries, adaptor, case
