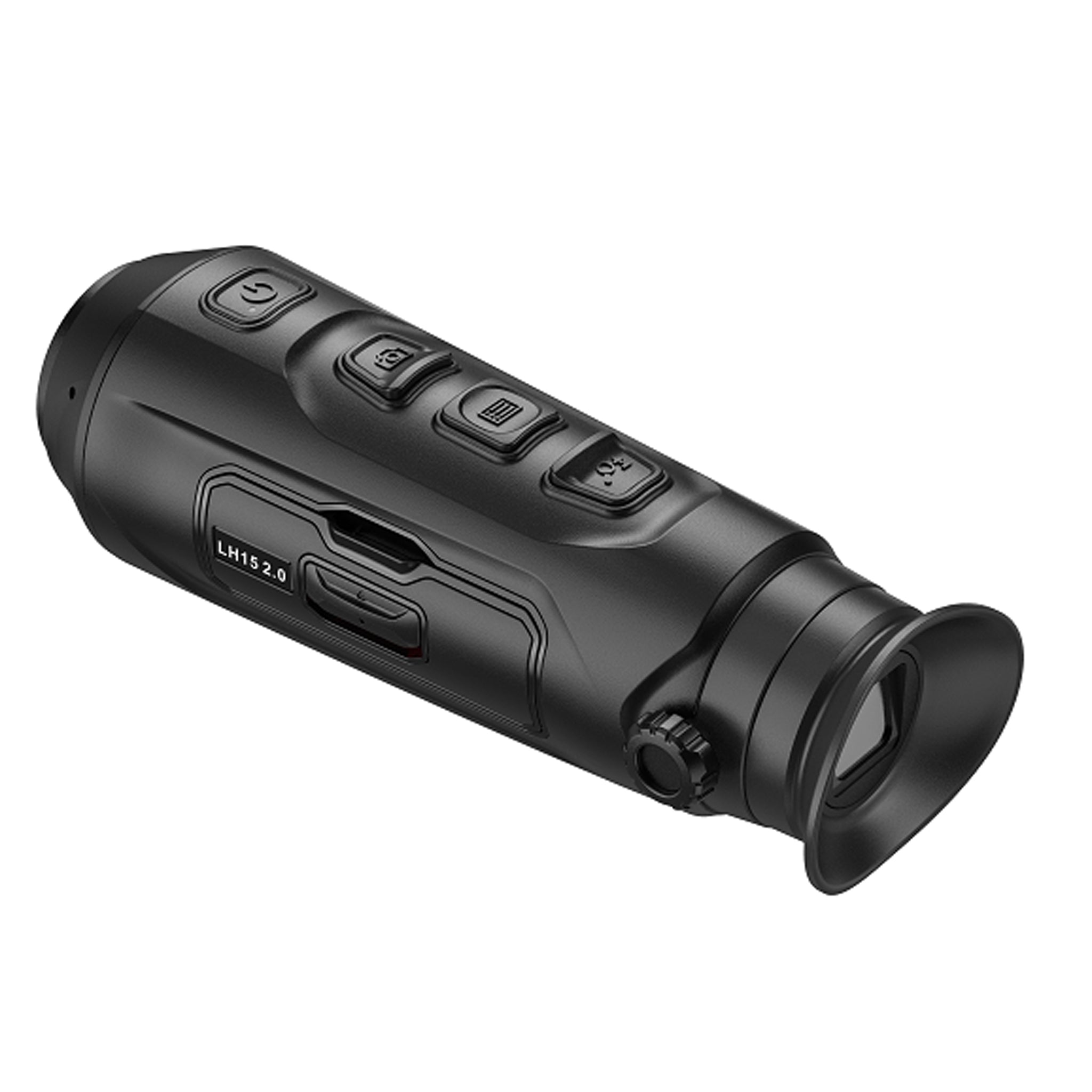

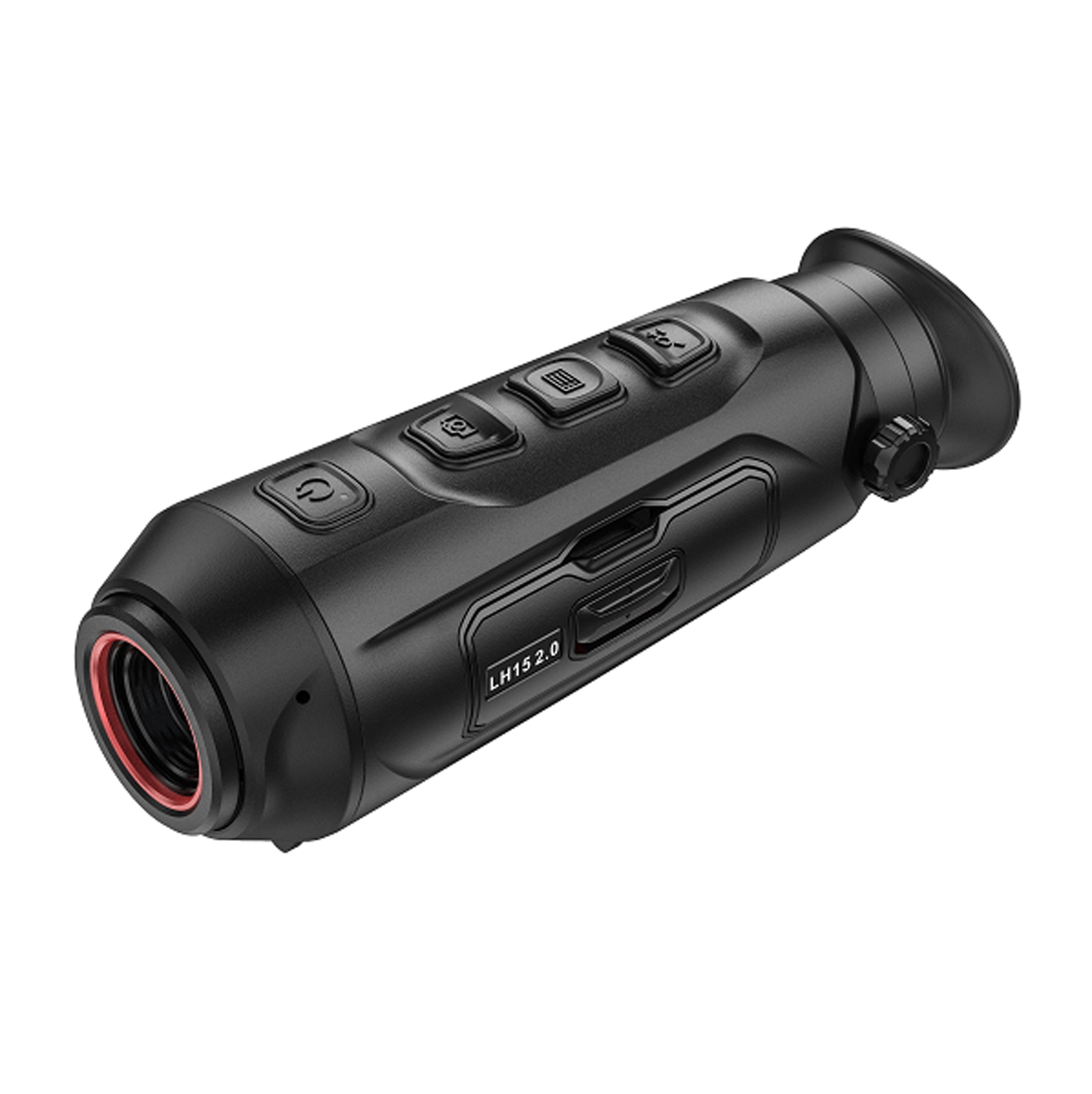

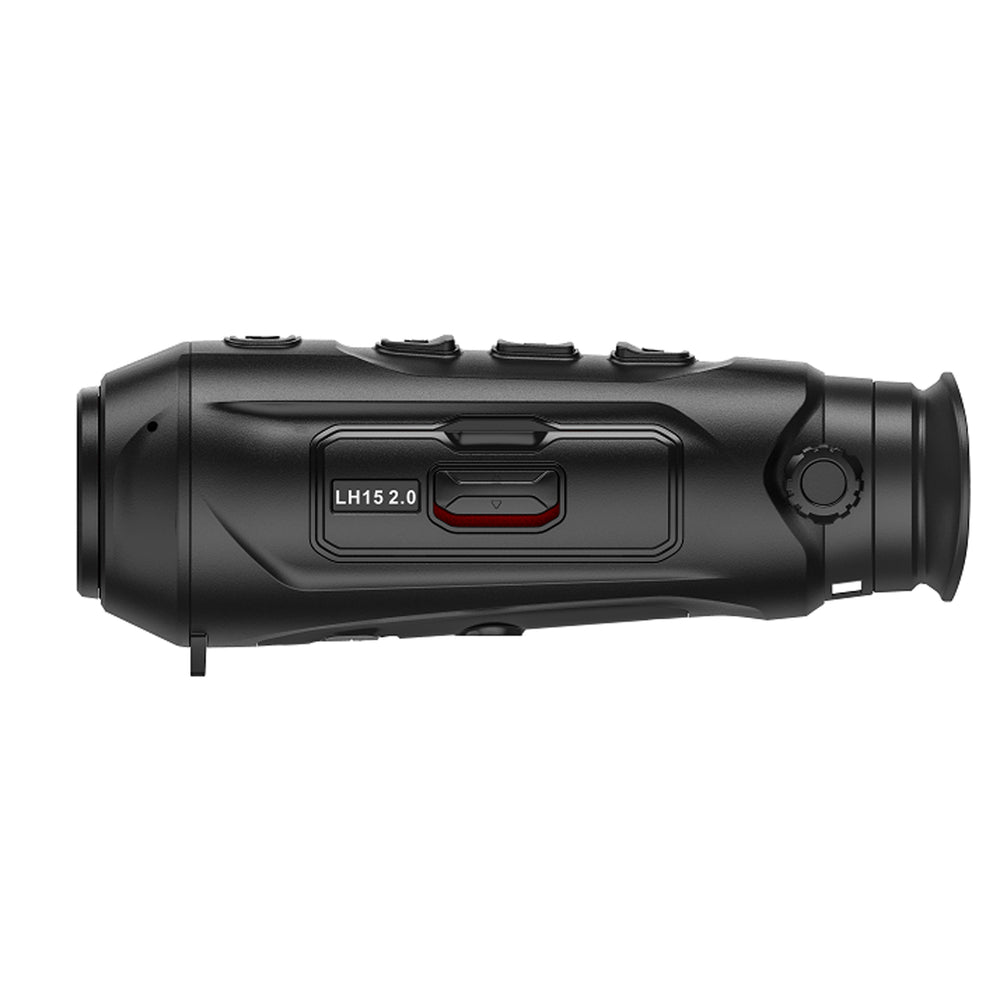

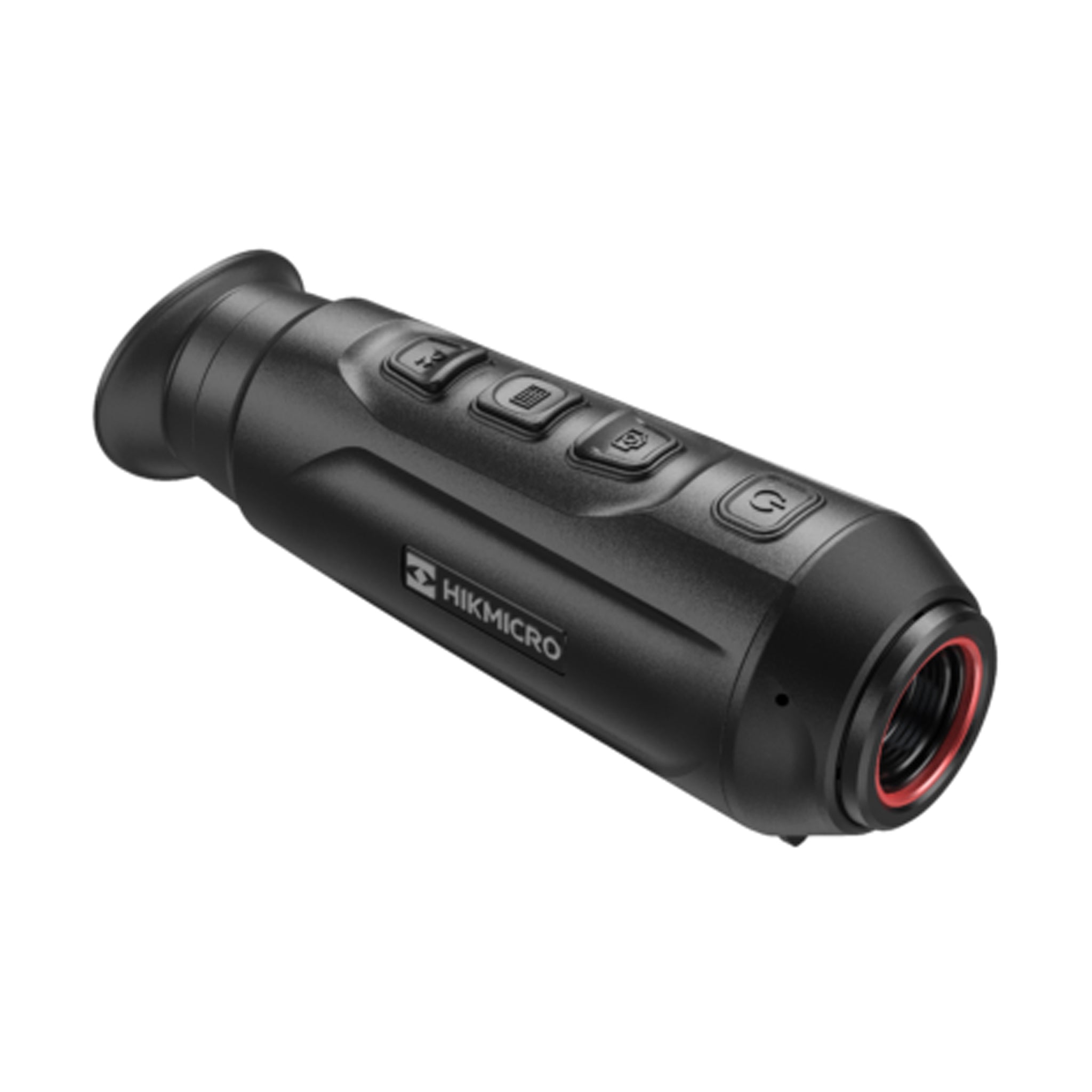

Experience the wilderness like never before with the Hikmicro Lynx LH15 2.0, your ultimate companion for night-time observations. This advanced handheld thermal monocular is engineered to transform your outdoor adventures with exceptional clarity and range. Whether tracking wildlife or navigating through dense terrains at night, the Lynx LH15 2.0 offers unparalleled precision and ease of use with its lightweight design and robust functionality. Stay ahead in the dark with the Lynx LH15 2.0 that features a high-resolution OLED display and a sensitive thermal sensor, ensuring that every detail is captured with sharpness and accuracy. Its compact size and ergonomic structure make it effortless to carry and operate, providing a seamless user experience even during extended periods of use. Equipped with a range of modes including Hot Track and Distance Measurement, this monocular is the perfect tool for enhancing your outdoor explorations, ensuring safety, and improving your situational awareness.
Image Sensor | VOx Uncooled Focal Plane Arrays |
---|---|
Resolution | 384 x 288 |
Frame Rate | 50 Hz |
Pixel Interval | 12 µm |
Response Waveband | 8 µm to 14 µm |
NETD | Less than 20 mK (25°C, F#=1.0) |
Lens (Focal Length) | 15 mm, f/1.0 |
Detection Range | 750 m |
Focusing Distance | 1.5 m |
Magnification | 1.4x to 11.2x (8x) |
Field of View (H x V) | 17.5° x 13.1°/30.8 m x 23.0 m @ 100 m |
Display | 1024 x 768, 0.39-inch, OLED |
Palettes | Black Hot, White Hot, Red Hot, Fusion |
FFC Mode | Auto, Manual, External Correction |
Exit Pupil | 6 mm |
Eye Relief | 20 mm |
Diopter (Range) | -5 D to +3 D |
Brightness Adjustment | Yes |
Tone Adjustment | Cold, Warm |
Contrast Adjustment | Yes |
Record Video | Yes |
Capture Snapshot | Yes |
Audio Recording | Yes |
Standby Mode | Yes |
Storage | Built-in EMMC (16 GB) |
PIP | Yes |
Hotspot | Yes |
Hot Track | Yes |
Distance Measurement | Yes |
Battery Type | Replaceable and Rechargeable Li-ion Battery |
Battery Operating Time | 6.5-hour continuous operation with CVBS and hotspot function off |
Type-C Power Supply | 5 VDC, 2 A; Supports External Power Supply |
Protection Level | IP67 |
Dimension | 164.0 mm x 56.0 mm x 60.8 mm |
Weight | 272 g without battery |
Working Temperature | -30°C to +55°C |
Experience high-definition clarity with a 384 x 288 resolution bolstered by a 12µm detector for precision thermal imaging.
The integrated 1024 x 768 OLED display ensures vivid visualization of thermal data, enhancing the overall viewing experience.
Designed for portability, the device weighs just 270g and features an ergonomic design for easy handling during extended use.
Powered by a replaceable and rechargeable Li-ion battery, enjoy up to 6.5 hours of continuous thermal imaging operation.
Ideal for a range of applications, from outdoor adventures to professional inspections, thanks to its compact form factor and extended battery life.
