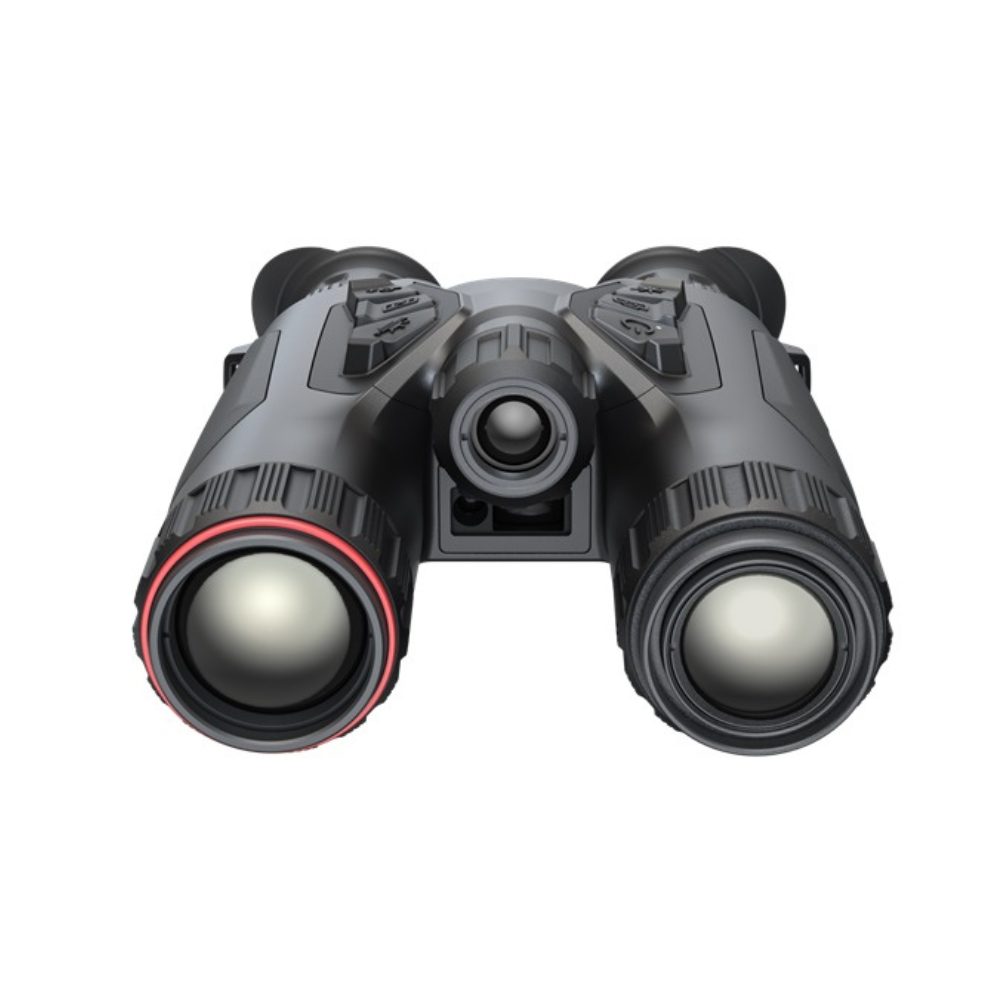

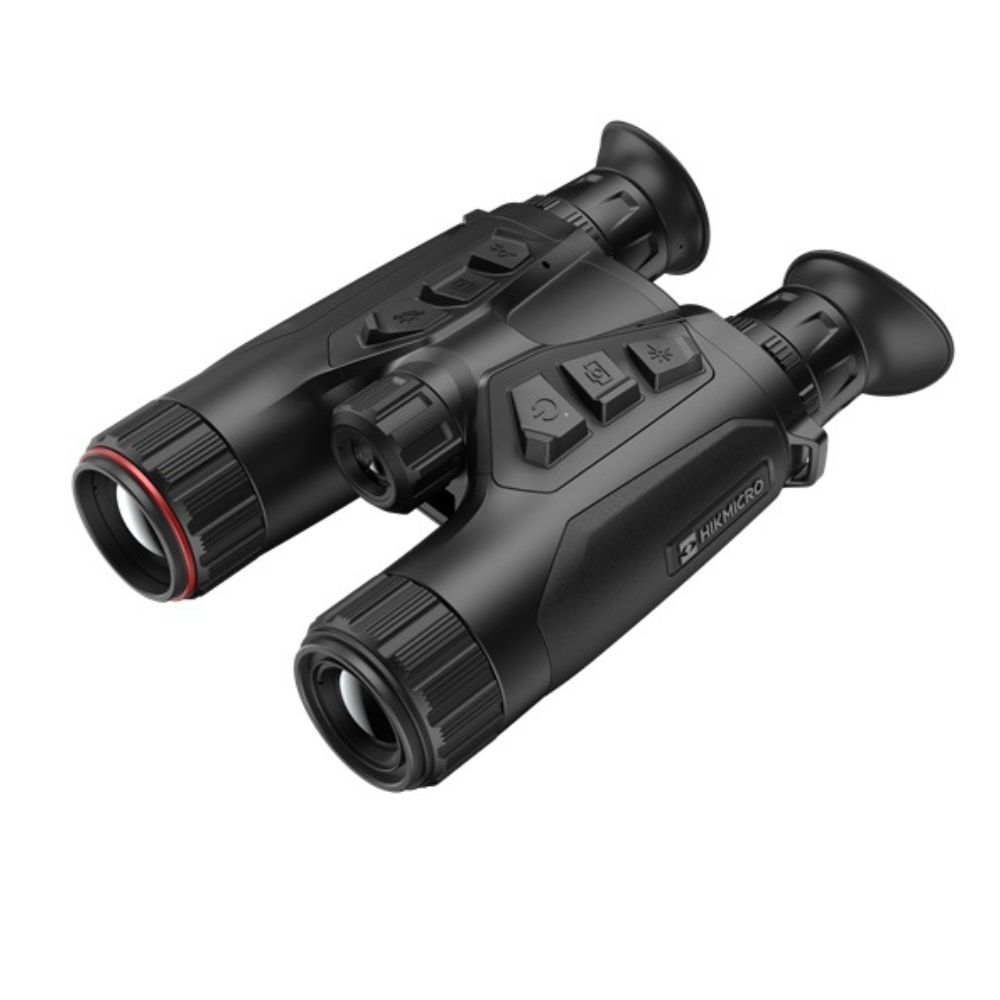

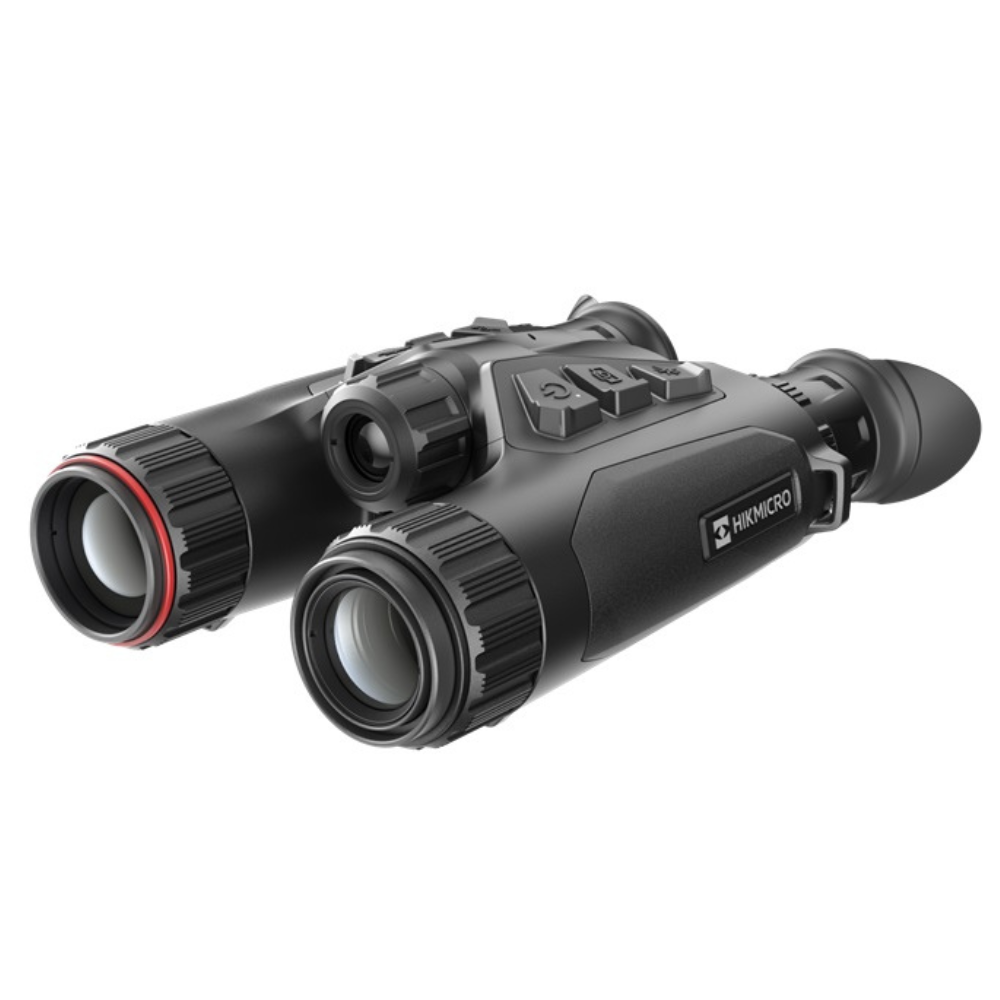

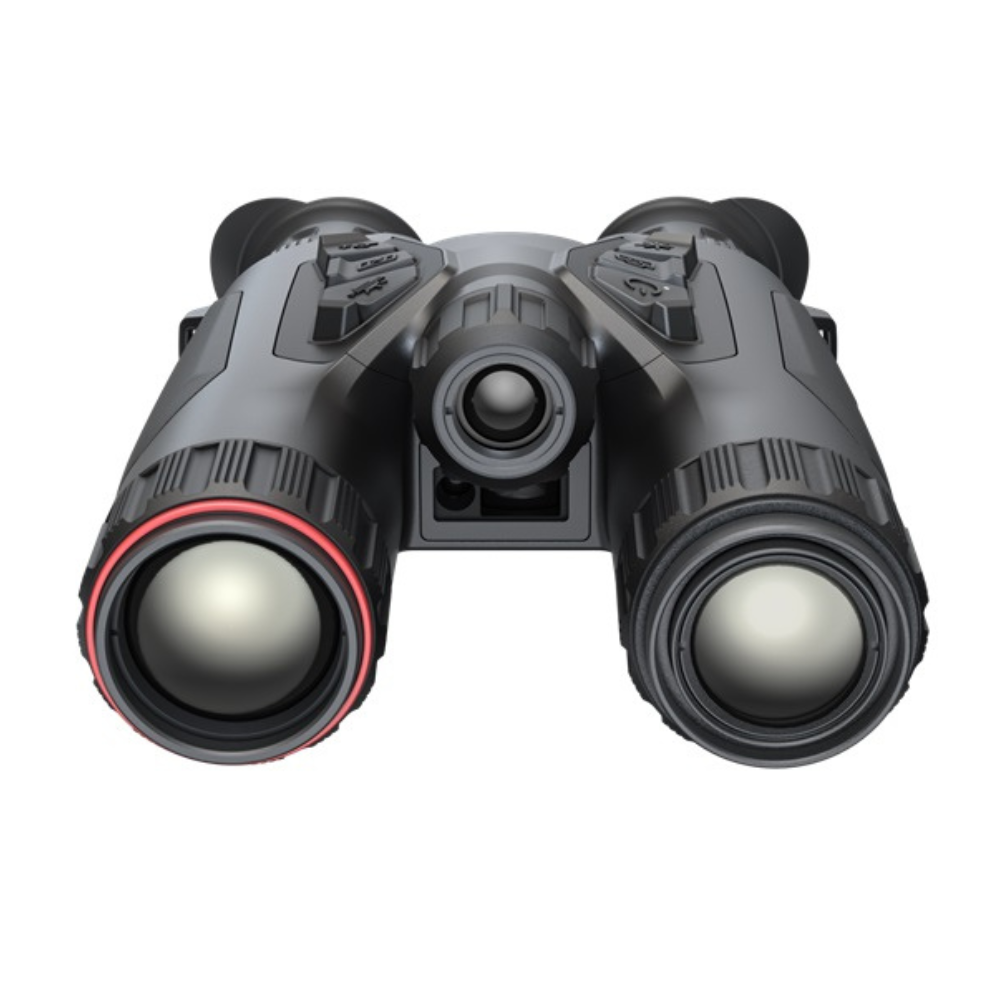

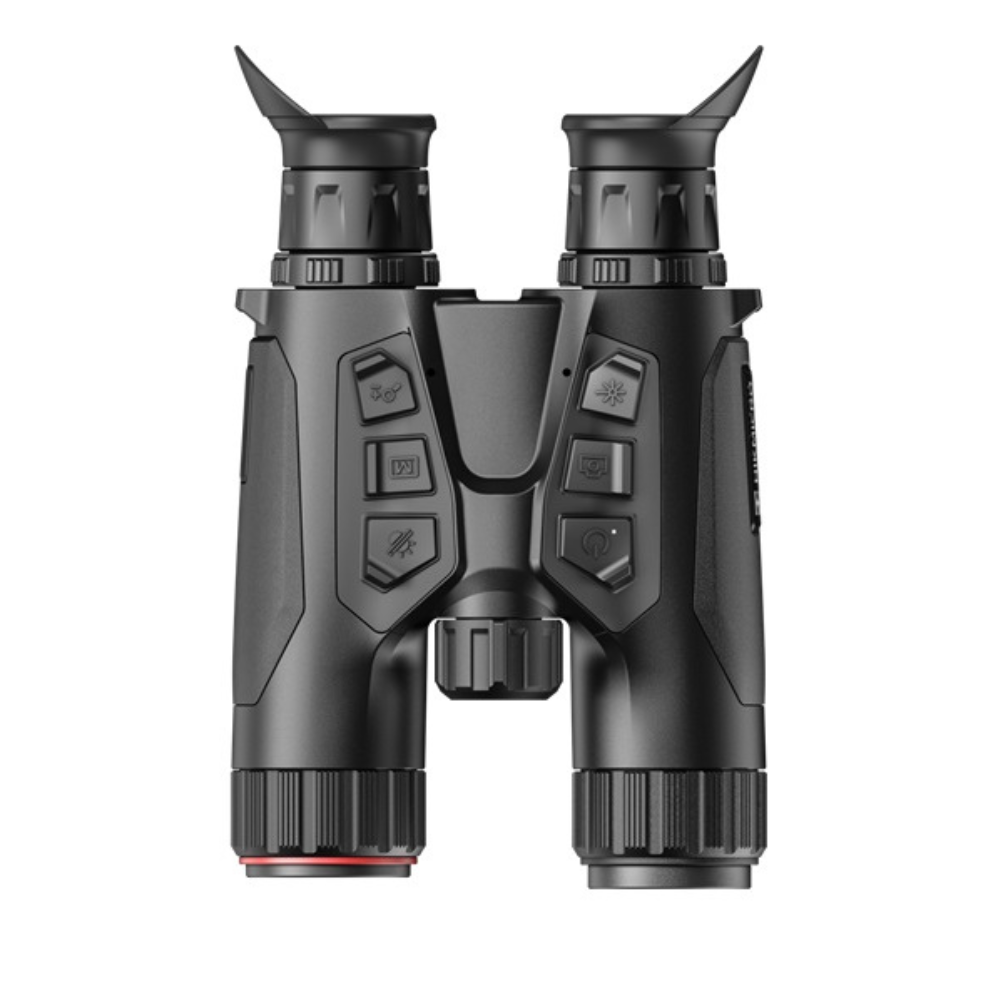

Hikmicro Habrok 4K 5.5-22x60 Multi-Spectrum Binoculars- HE25L

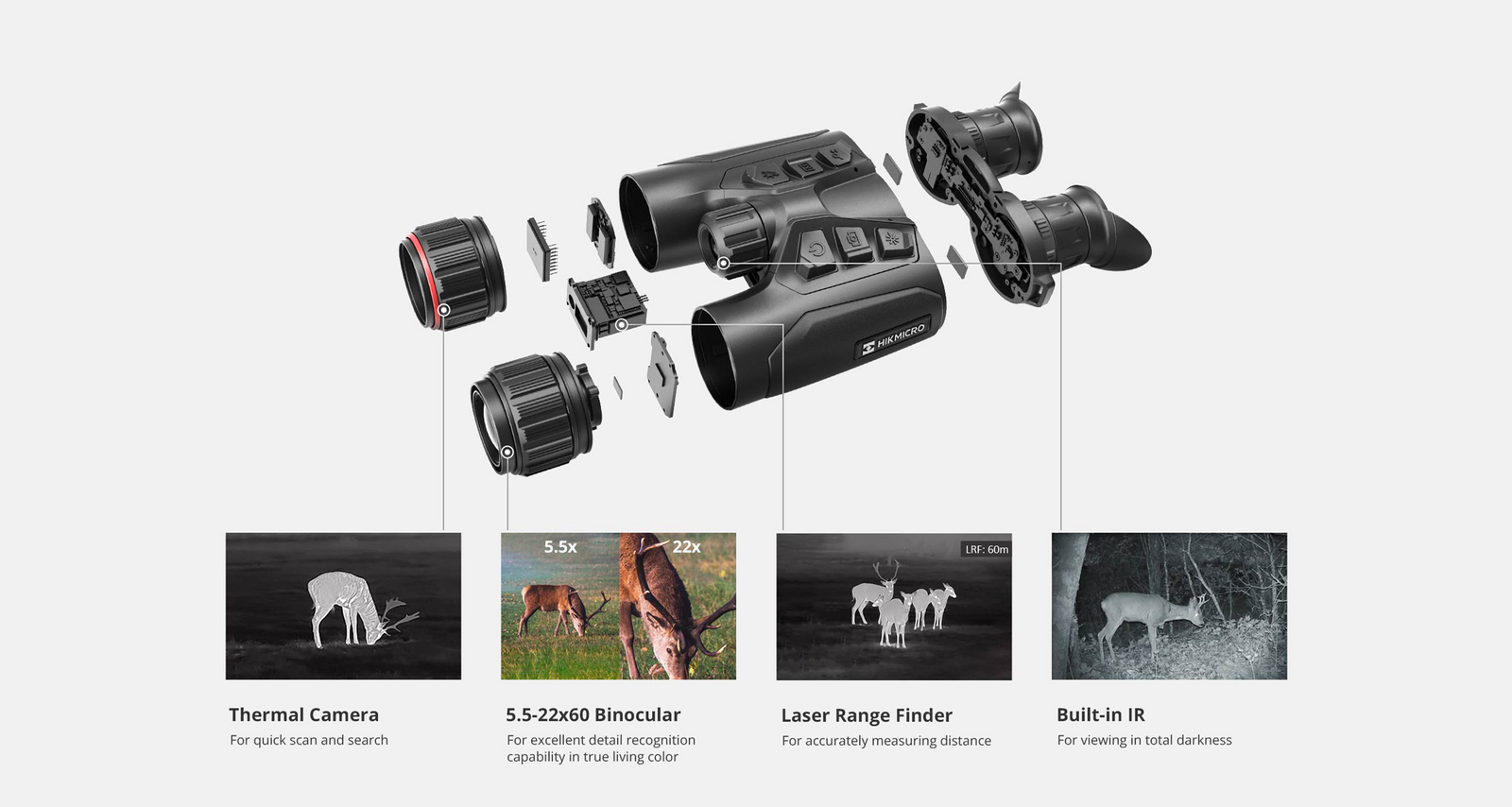

Features

• 256 × 192 resolution @12 μm thermal detector
• High sensitivity thermal module NETD < 35 mK (@ 25°C, F# = 1.0)
• 25 mm, F1.0 lens with thermal detection range up to 1,200 m
• 3840 × 2160 4K ultra high-resolution CMOS detector
• 60 mm, F2.2 digital lens with 5.5x to 22x digital zoom
• 1920 × 1080 resolution 0.49-inch OLED display
• Built-in 850 nm IR illuminator and Laser Rangefinder of 1,000 m measuring distance
• 795 g lightweight, with a compact and ergonomic design

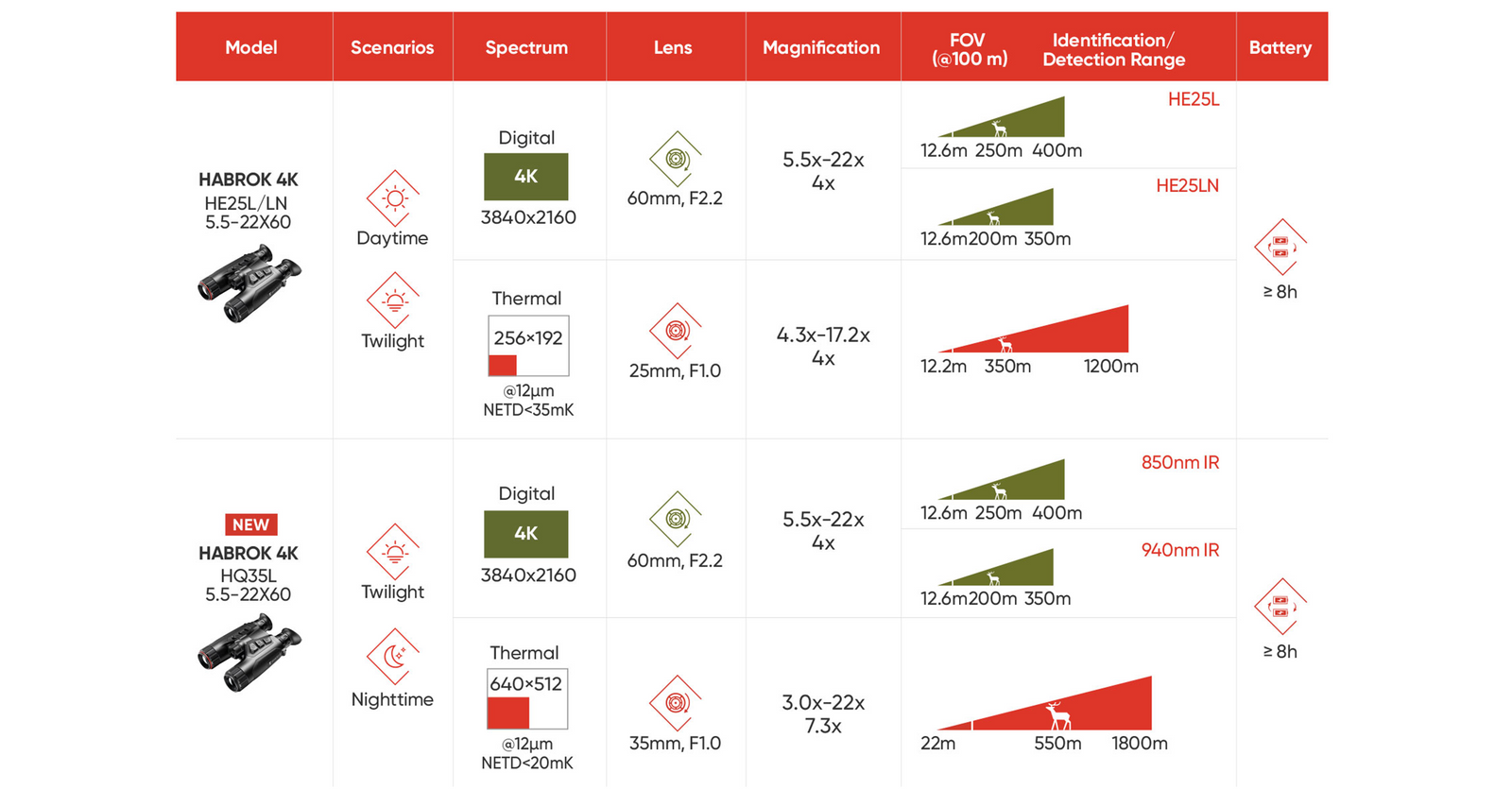

Technical Specifications

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Resolution: 256 × 192
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 35 mK (@ 25°C), F# = 1.0
• Lens (Focal Length): 25 mm, F1.0
• Focus Mode: Focus Ring
• Detection Range: 1,200 m
• Focusing Distance: 3 m
• Magnification: 4.3x to 17.2x (4x)
• Field of View (H × V), Degrees/ m @ 100m: 7.0° × 5.3°/12.2 m × 9.3 m

Optical Module

• Image Sensor: 1.88” Progressive Scan CMOS
• Resolution: 3840 × 2160
• Focal Length: 60 mm, F2.2
• Working Distance: 8 m
• Focus Mode: Focus Ring
• Magnification: 5.5x to 22.0x (4x)
• Field of View (H × V), Degrees/m @100 m: 6.9°× 4.1°/12.0 m × 7.2 m
• Smart IR: Yes
• IR Illuminator Wavelength: 850 nm
• Viewing Range at Night: 400 m

Image Display

• Display: 0.49”, OLED, 1920 ×1080
• Palettes: Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit Pupil: 8 mm
• Eye Relief: 15 mm
• Diopter (Range): -5 D to +3 D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, warm
• Contrast Adjustment: Yes
• Zoom Pro: Yes

System

• Record Video: Yes
• Capture Snapshot: Yes
• Audio Recording: Yes
• Standby Mode: Yes
• Storage: Built-in EMMC (64 GB)
• PIP: Yes
• Hotspot: Yes
• Hot Track: Yes
• Digital Magnetic Compass: Yes
• GPS: Yes
• Local Album: Yes

Power Supply

• Battery Type: Replaceable and Rechargeable Li-ion Battery
• Battery Operating Time : ≥ 8 h (25℃, with hotspot off)
• Type-C Power Supply: 5 VDC, 2 A; Supports External Power Supply

General

• Protection Level: IP67
• Dimension: 138 mm × 68.2 mm × 223 mm
• Working Temperature: -30℃ to +55℃
• Weight: 795 g without batteries
• Interpupillary Adjustment Range: 60 mm to 74 mm
• Mounting Adapter: 1/4“-20-UNC

Laser Rangefinder

• Safety Class for Laser: Class 1
• Wavelength: 905 nm
• Measuring Range: 1,000 m
• Measurement Accuracy: ±1 m
• Measuring Range: 10 m

INCLUDED IN THE BOX

• HIKMICRO Habrok 4K 5.5-22X60 Multi-Spectrum Binocular (HE25L)
• 1 x Neck Strap
• 1 x Type-C Cable
• 1 x Tripod Adaptor
• 4 x Battery
• 1 x QSG
• 1 x Lint-Free Cloth
• 1 x Battery Charger
