Description
Take the first step into long-range shooting with an optic that helps you go the distance with a ton of shooter-friendly features. Featuring a 5x mag range built into a 34mm tube for a massive amount of turret travel, the Venom® also includes our RevStop™ Zero System for a fast, easy, reliable return to zero. The EBR-7C, First Focal Plane reticle gives you accurate holds at any magnification, and an included throw lever allows for fast transitions between magnifications. It’s the quickest way to get your rifle out to 1,000 yards and beyond at a price that lets you go deep for less
Venom® 5-25x56 FFP Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | ||
| 15.25 | 2.60 | 2.4 | 6.9 | ||
| Heights | |
|---|---|
| H1 | H2 |
| 2.54 | 1.81 |
| Aluminum Grade | Aircraft |
|---|---|
| ArmorTek® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Multi-Coated | Fully Multi-Coated |
| HD Lens Elements | XD™ |
| Shockproof | Rugged construction withstands recoil and impact. |
| Throw Lever | The included throw lever can be installed for quick and easy magnification adjustments. |
| Magnification | 5-25x |
|---|---|
| Objective Lens Diameter | 56 mm |

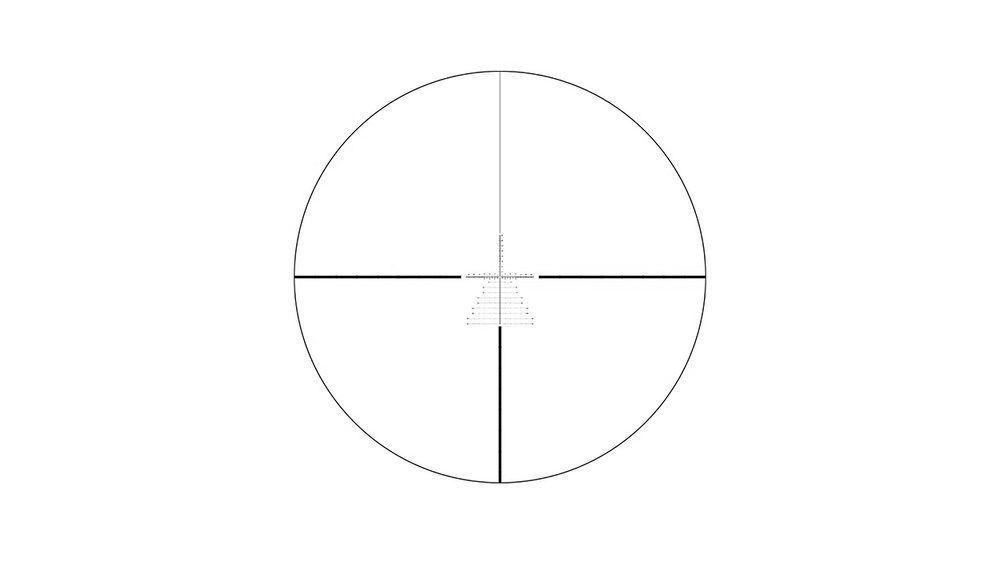

| Reticle | EBR-7C (MOA) |
| Turret Style | Exposed Tactical |
| Tube Size | 34 mm |
| Adjustment Graduation | 1/4 MOA |
| Parallax Setting | 15 yards to infinity |
| Max Windage Adjustment | 85 MOA |
| Max Elevation Adjustment | 85 MOA |
| Travel Per Rotation | 25 MOA |
| Field of View | 21.2-4.7 ft @100 yds |
| Eye Relief | 3.6 inches |
| Length | 15.3 inches |
| Weight | 35 oz. |
INCLUDED IN THE BOX
- 3" Sunshade
- Turret Tool
- Rubber Lens Covers
- Lens Cloth
- Throw Lever
- 2mm Hex Wrench
- RevStop Zero Ring
Parts Diagram (PDF)
(1.24 MB)
EBR_7C_MOA Reticle Manual (PDF)
(3.06 MB)
EBR_7C_MRAD Reticle Manual (PDF)
(3.05 MB)
Product Manual (PDF)
(1.54 MB)
VENOM® 5-25X56 FFP RIFLESCOPE - PRODUCT OVERVIEW
Meet the Venom® 5-2556 FFP Riflescope, your all-new way to get into the long-distance game faster with a first focal plane optic packed full of shooter-friendly features. A 5-25x magnification range and a 34mm tube give ample power and turret travel, and our exclusive RevStop™ Zero System gives you a fast, reliable return to zero. The included throw lever allows for fast transitions between magnifications, topping off an optic that lets you go deep for less.
VENOM® RIFLESCOPE VS DIAMONDBACK® TACTICAL RIFLESCOPE VS STRIKE EAGLE® RIFLESCOPE
We break down the differences between the brand-new Venom®, Strike Eagle®, and Diamondback® Tactical riflescopes. We'll dive into magnification and tube diameter variances, different reticle offerings, and other new technology, like the RevStop Zero System to help you find the perfect match for your specific shooting application.
VENOM® 5-25X56 FFP RIFLESCOPE UNBOXING
