Description
When you're ready to step up your long-distance game, the Strike Eagle gives you more of the tools you need for less than you'd expect. Start with excellent edge-to-edge sharpness, and add a first focal plane (FFP) illuminated reticle for fast reads at any magnification and lighting situation. Add in our RevStop Zero System for a hard return to zero, and locking turrets for fast, stay-put adjustments. Build it around a 34mm tube that accommodates massive amounts of elevation and windage travel, and a throw lever for rapid magnification changes, and you've got a long-distance impact machine that'll have you wondering how you ever shot without it.
Strike Eagle 5-25x56 FFP Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 14.6 | 2.0 | 2.6 | 6.4 | 4.75 | 3.6 |
| Heights | |
|---|---|
| H1 | H2 |
| 2.5 | 1.8 |
| Aluminum Grade | Aircraft |
|---|---|
| ArmorTek® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Multi-Coated | Fully Multi-Coated |
| HD Lens Elements | XD™ |
| Throw Lever | The included throw lever can be installed for quick and easy magnification adjustments. |
| Magnification | 5-25x |
|---|---|
| Objective Lens Diameter | 56 mm |
| Reticle | EBR-7C (MRAD) |
| Tube Size | 34 mm |
| Adjustment Graduation | .1 MRAD |
| Parallax Setting | 15 yards to infinity |
| Max Windage Adjustment | 23 MRAD |
| Max Elevation Adjustment | 31 MRAD |
| Travel Per Rotation | 10 MRAD |
| Field of View | 24.0 - 5.2 ft @100 yds |
| Eye Relief | 3.7 inches |
| Length | 14.6 inches |
| Weight | 30.4 oz |
INCLUDED IN THE BOX
- Sunshade
- Lens cloth
- CR2032 battery
- Turret tool
- 2mm hex wrench
- Throw lever
- Rubber style lens covers
- RevStop Zero Ring
EBR_7C_MRAD Reticle Manual (PDF)
(1.05 MB)
EBR_7C_MOA Reticle Manual (PDF)
(1.06 MB)
Parts Diagram (PDF)
(1.14 MB)
Product Manual (PDF)
(1.46 MB)

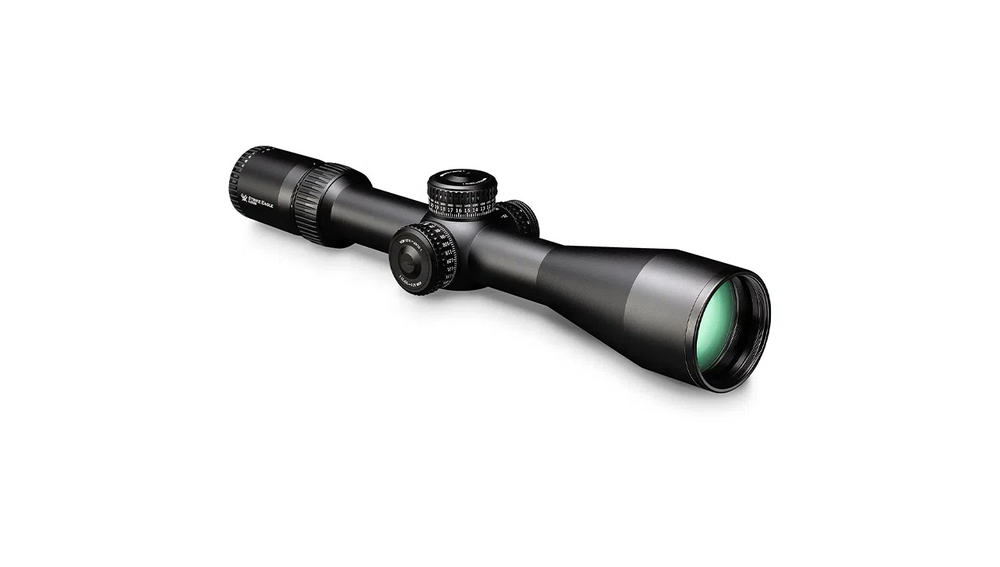

VORTEX STRIKE EAGLE® 5-25X56 FFP RIFLESCOPE
Introducing the Strike Eagle® 5-25x56 FFP. Featuring the RevStop™ Zero System for easy return to zero, exposed locking turrets and illuminated first focal plane reticle, the Strike Eagle 5-25x56 gives tactically-minded shooters all the tools they need to dominate the long range game.
STRIKE EAGLE® 5-25X56 FFP OVERVIEW
When you're ready to step up your long-distance game, the Strike Eagle gives you more of the tools you need for less than you'd expect.
HOW TO SET THE STRIKE EAGLE® 5-25X56 FFP. 5-25X56 FFP REVSTOP™ ZERO SYSTEM
Unlock it, remove it, set it, and send it - the four simple steps to setting the Rev Stop Zero System on the brand-new Strike Eagle 5-25x56 FFP riflescope. Watch it in action right here.
STRIKE EAGLE® 5-25X56 VS DIAMONDBACK® TACTICAL 6-24X50 FFP
The Strike Eagle® 5-25x50 is a long-range tactical shooter’s dream come true. But is it right for you? Find out, and learn about the features that make it great, as we compare it with the Diamondback® Tactical 6-24x50.
STRIKE EAGLE® 5-25X56 FFP UNBOXING
