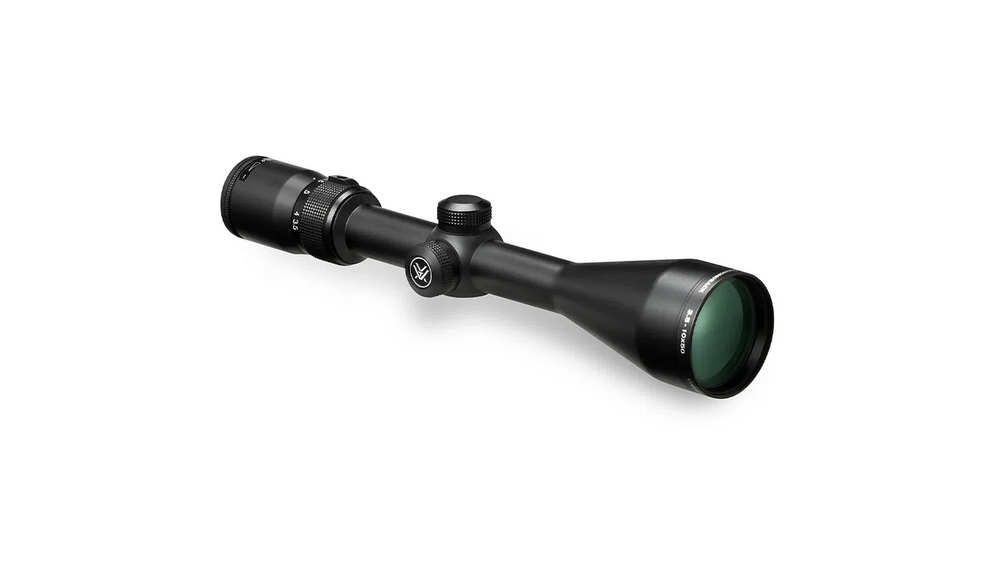

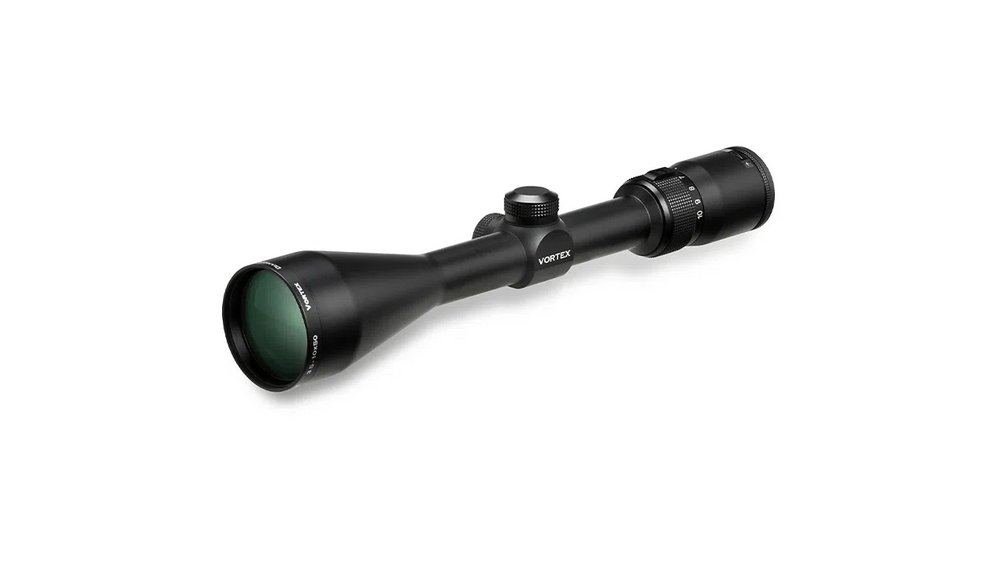

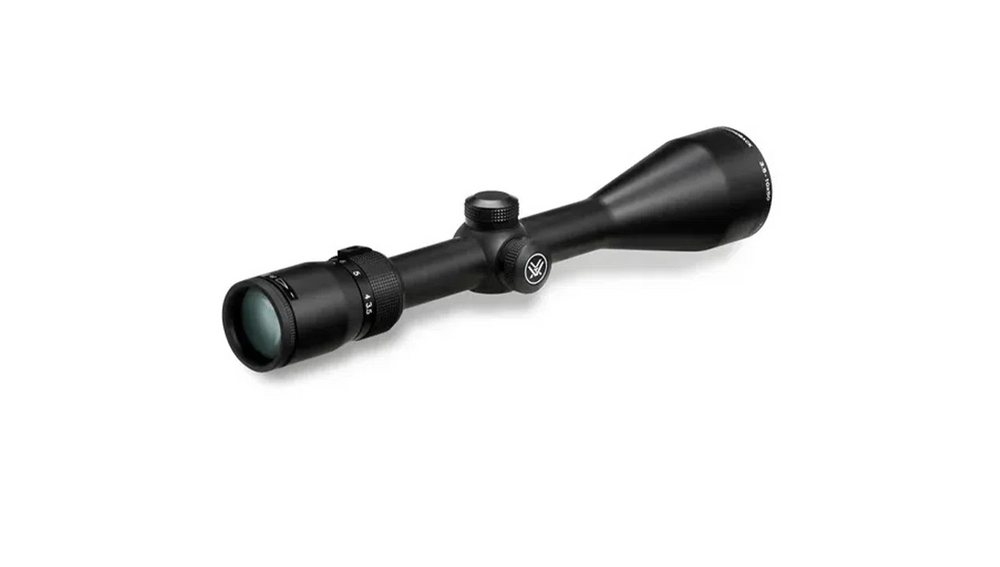

The Diamondback - loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more-but doesn't. We can live with that.
Diamondback 3.5-10x50 Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 12.5 | 2.15 | 2.1 | 5.48 | 3.85 | 3.1 |
| Heights | |
|---|---|
| H1 | H2 |
| 2.29 | 1.69 |
| Aluminum Grade | Aircraft |
|---|---|
| Multi-Coated | Fully Multi-Coated |
| Shockproof | Rugged construction withstands recoil and impact. |
| Magnification | 3.5-10x |
|---|---|
| Objective Lens Diameter | 50 mm |

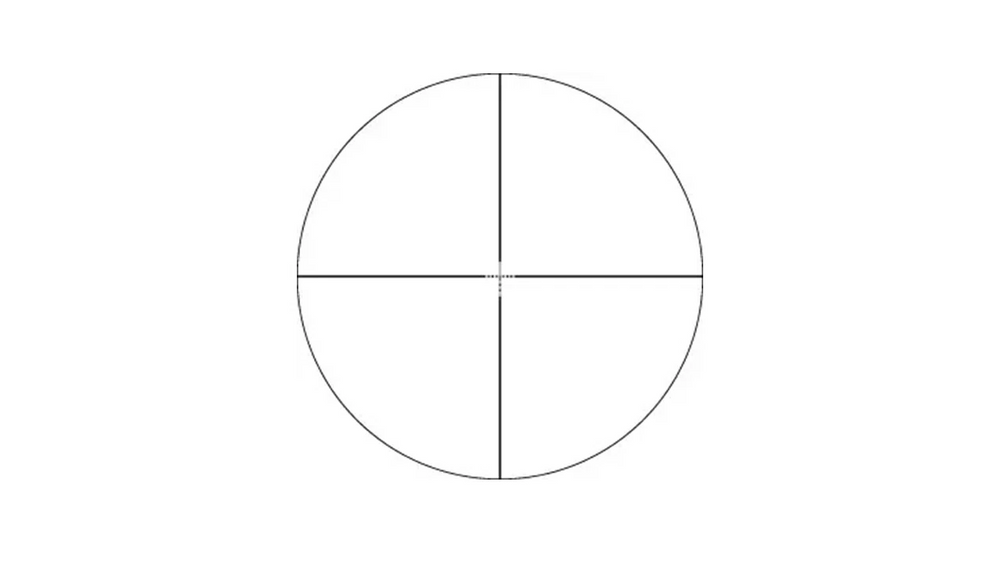

| Reticle | Dead-Hold® BDC (MOA) |
| Turret Style | Capped |
| Tube Size | 1 inch |
| Adjustment Graduation | 1/4 MOA |
| Parallax Setting | 100 yards |
| Max Windage Adjustment | 65 MOA |
| Max Elevation Adjustment | 65 MOA |
| Travel Per Rotation | 15 MOA |
| Field of View | 35.8-13.5 ft/100 yds |
| Eye Relief | 3.3 inches |
| Length | 12.5 inches |
| Weight | 16.2 oz |
INCLUDED IN THE BOX
- Removable lens covers
- Lens cloth
Dead-Hold BDC MOA Reticle Manual (PDF)
(0.97 MB)
Parts Diagram (PDF)
(821.03 kB)
Product Manual (PDF)
(3.40 MB)

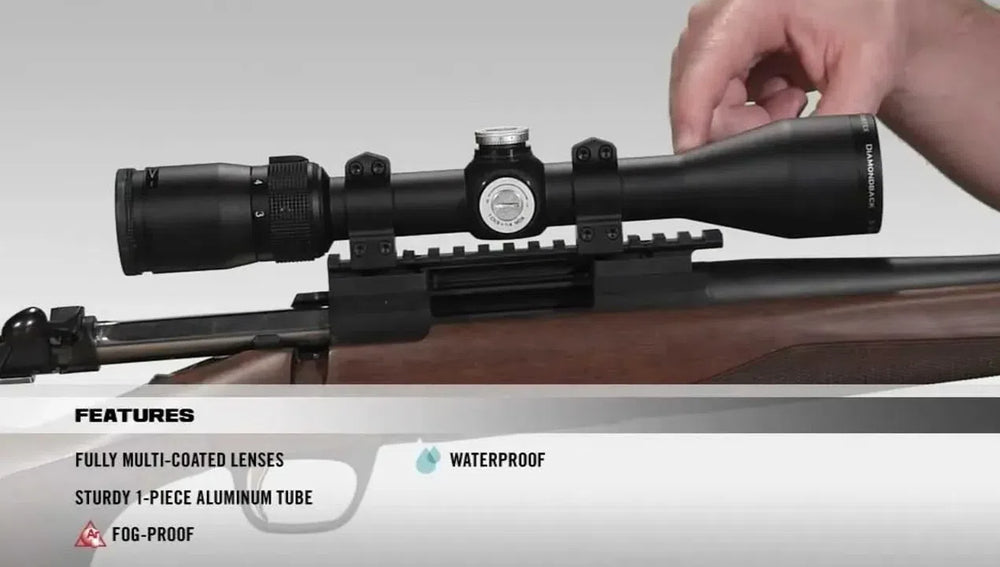

VORTEX DIAMONDBACK RIFLESCOPE
Bang for the buck - the Diamondback is your riflescope.
WHY I CHOSE: VORTEX DIAMONDBACK RIFLESCOPE

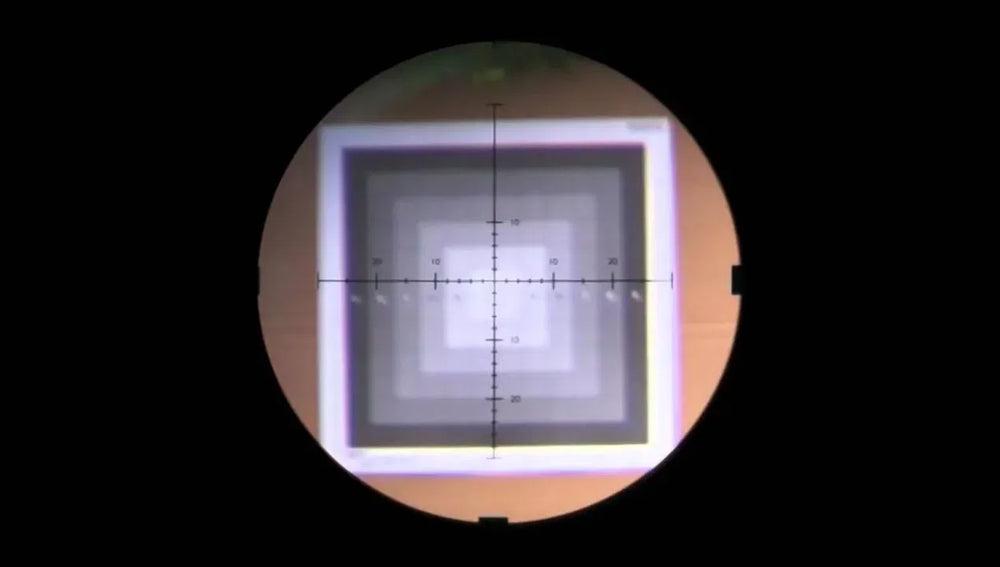

VORTEX RIFLESCOPES: FIRST VS. SECOND FOCAL PLANE
Some of you are already very familiar with the differences between first and second focal plane riflescopes but for those of you out there who are unsure, we put together this short, basic video to give you some basic insight and help you decide which design would likely work best for you.
HOW TO USE THE VORTEX DEAD-HOLD® BDC RETICLE
This video is a tutorial showing how to effectively use the Vortex Optics Dead Hold® BDC reticle in the field. Make sure to pay careful attention to the caliber you are shooting and which category it fits into in the Dead-Hold BDC manual, since trajectories can perform very differently over distance. Also, make sure to validate the ballistics of the specific rounds you will be firing in order to be aware of any difference in trajectory between your rounds and the trajectory suggested by the BDC holdover points.
