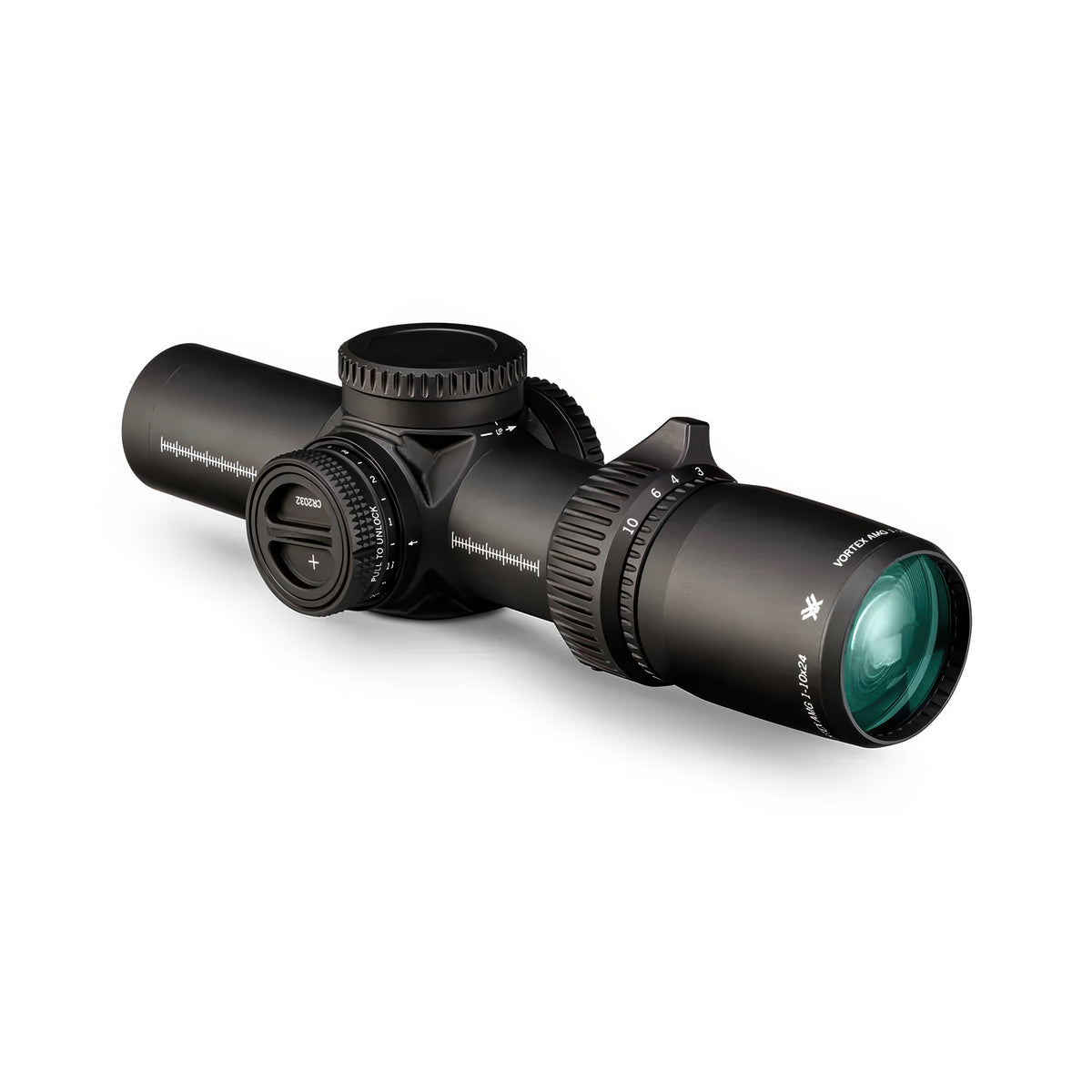

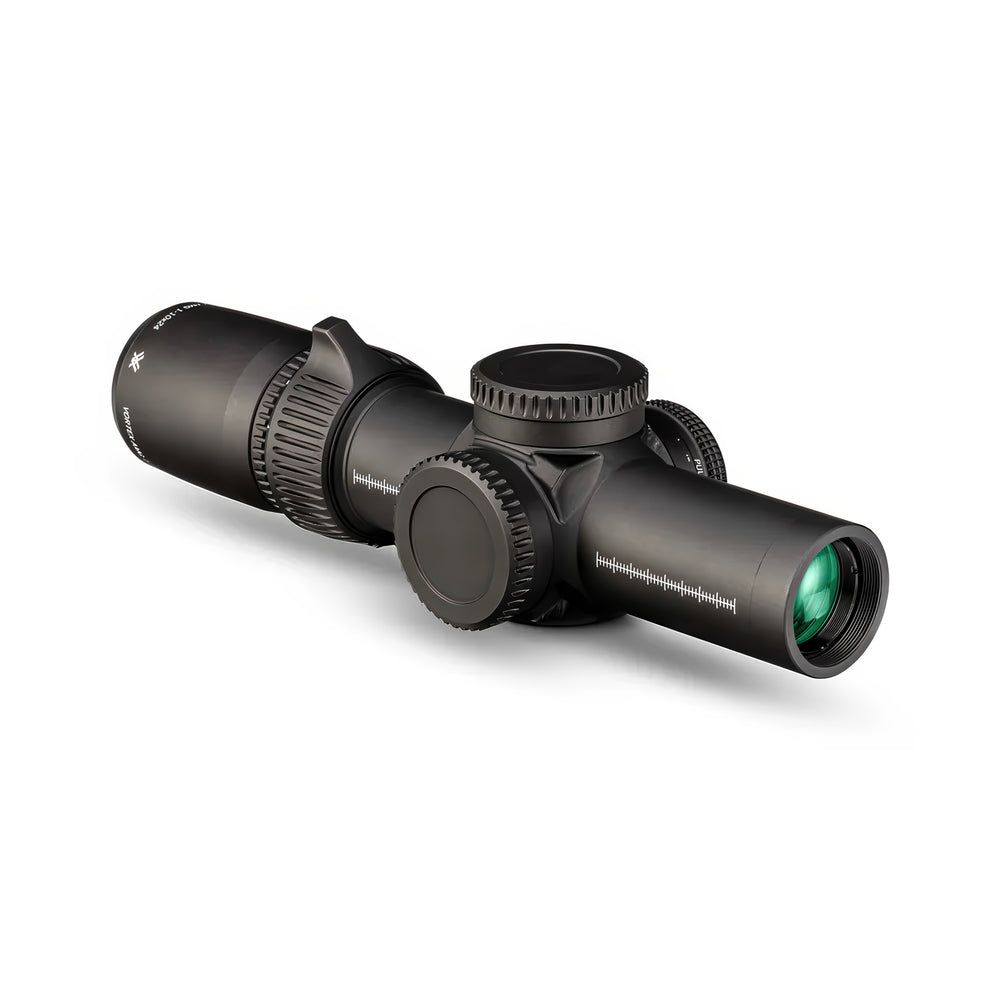

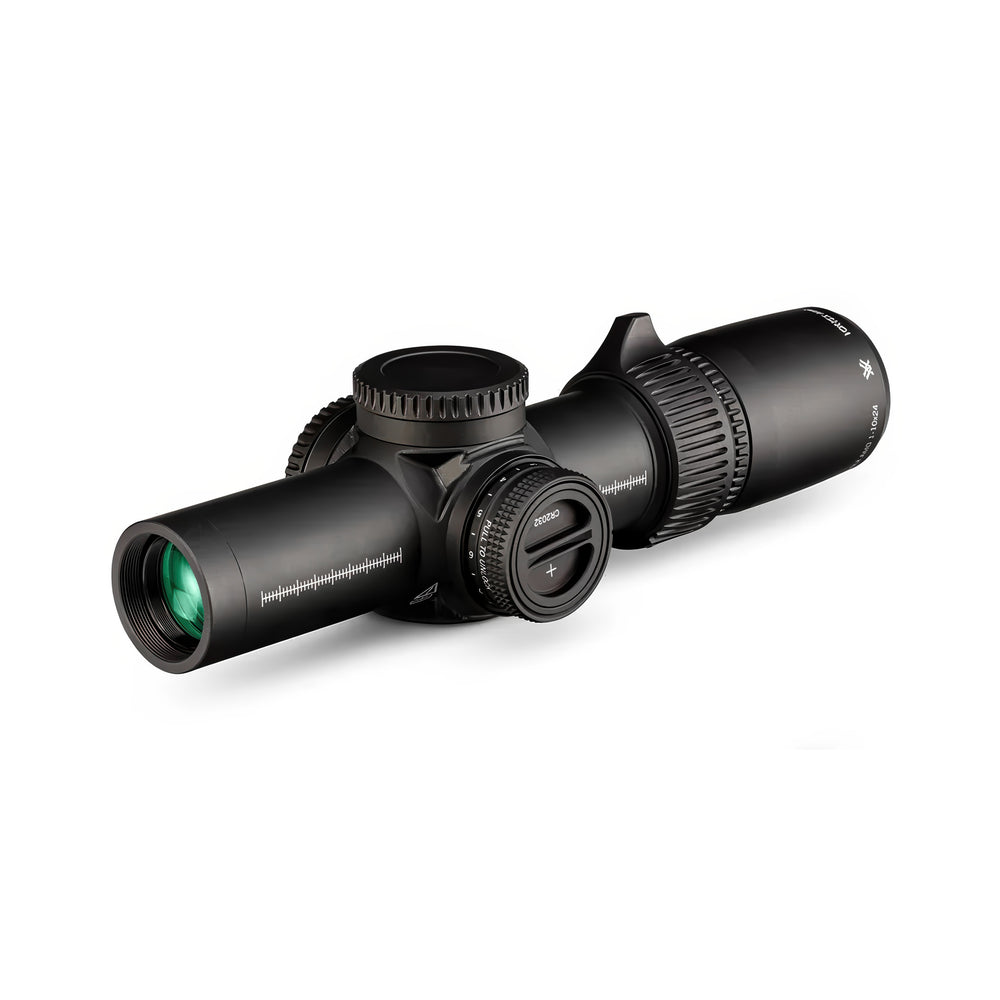

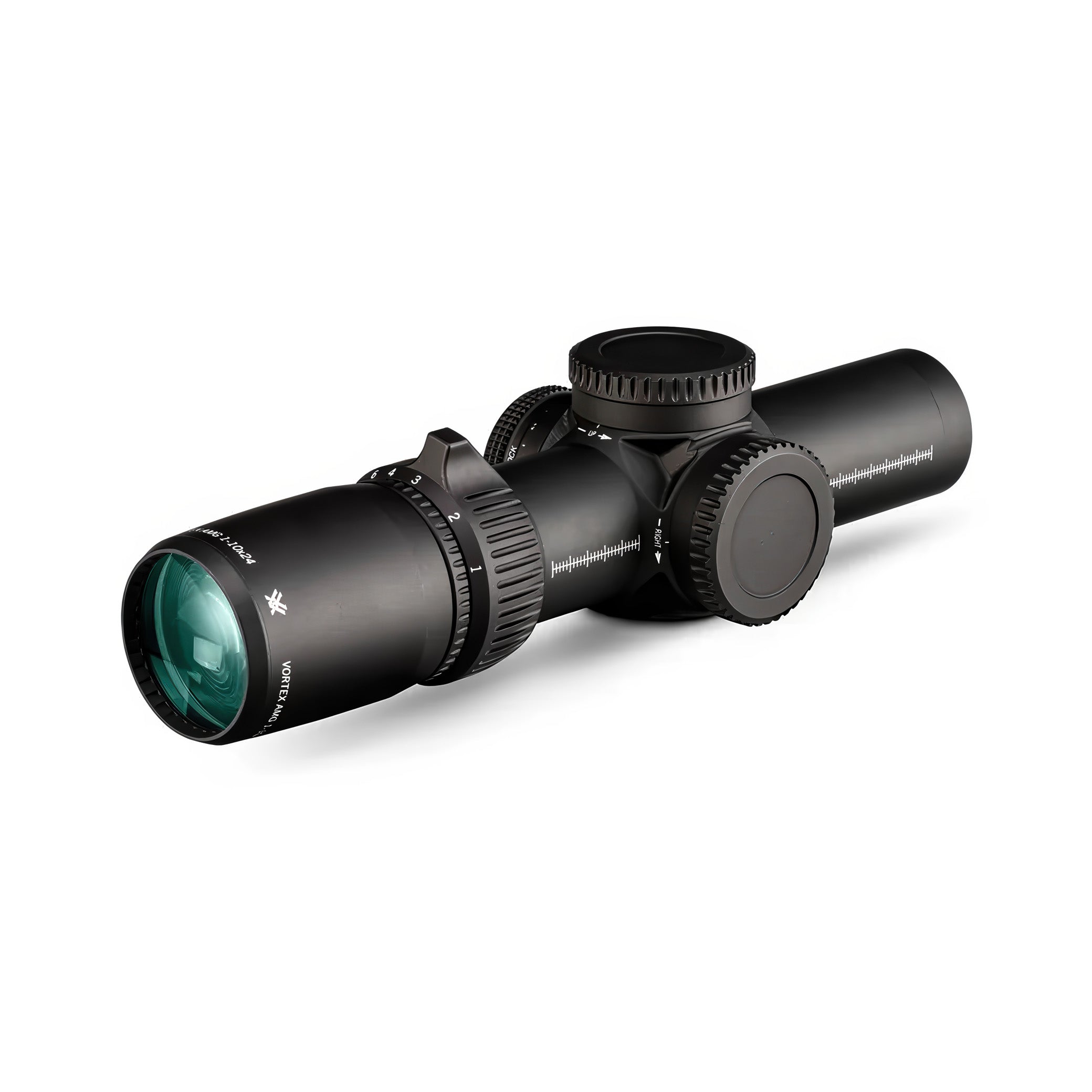

Fast, and precision-built, the Vortex AMG 1-10x24 FFP Riflescope (AMG-11002) is a premium LPVO designed for serious competition, tactical, and duty use. With a true 1-10x magnification range, a rugged 34mm tube, and an ultra-short 8.4" footprint, it’s ideal for short-barreled carbines and modern AR-platform rifles where rail space and speed matter most. The first focal plane (FFP) EBR-9 MRAD reticle keeps holdovers and ranging consistent through the zoom range, delivering confident target engagement from point-blank to extended distances.
Built around a class-leading HD optical system with premium lens coatings, this illuminated riflescope delivers crisp resolution, strong contrast, and a wide field of view for rapid transitions. The Dual Zero, toolless, capped turrets are made for real-world use—quick, repeatable zeroing and protected adjustments when moving hard on the range or in the field. From close-quarters snap shooting at 1x to precise holds at 10x, this illuminated MRAD LPVO is engineered to perform under pressure.
VORTEX AMG 1-10X24 FFP RIFLESCOPE
The Vortex AMG 1-10x24 FFP Riflescope delivers true versatility for close-quarters speed and long-range precision.
Built for shooters who demand top-tier optical clarity, rugged reliability, and a wide magnification range in a compact package.First Focal Plane Precision
The EBR-9 MRAD reticle stays accurate across the entire zoom range, allowing rapid holds and ranging at any magnification.Ultra-Clear Optical System
Advanced glass and premium lens coatings maximize resolution and low-light performance from edge to edge.True 1x Performance
The scope offers a flat, distortion-free sight picture at 1x, giving shooters both-eyes-open speed similar to a red dot.Rugged Build Quality
Designed to handle extreme recoil and environmental conditions, ensuring dependable performance in all scenarios.Precise MRAD Adjustments
Turrets give tactile, repeatable adjustments with dependable tracking for accurate dialing on distant targets.Lightweight and Compact
Built with a lightweight chassis that keeps rifles fast-handling without sacrificing durability or performance.Wide 1-10x Magnification
Transition smoothly from close-range engagement to long-range shots with the broad magnification range.
Product Dimensions (Inches)
Below are the scope’s primary exterior measurements, providing shooters with essential fit and compatibility and details for mounting.
| Mounting Length L1 | 8.4 |
|---|---|
| Mounting Length L2 | 1.97 |
| Mounting Length L3 | 1.12 |
| Mounting Length L4 | 4.86 |
| Mounting Length L5 | 0.38 |
| Mounting Length L6 | 3.20 |
| Mounting Height H1 | 1.33 |
| Mounting Height H2 | 1.74 |

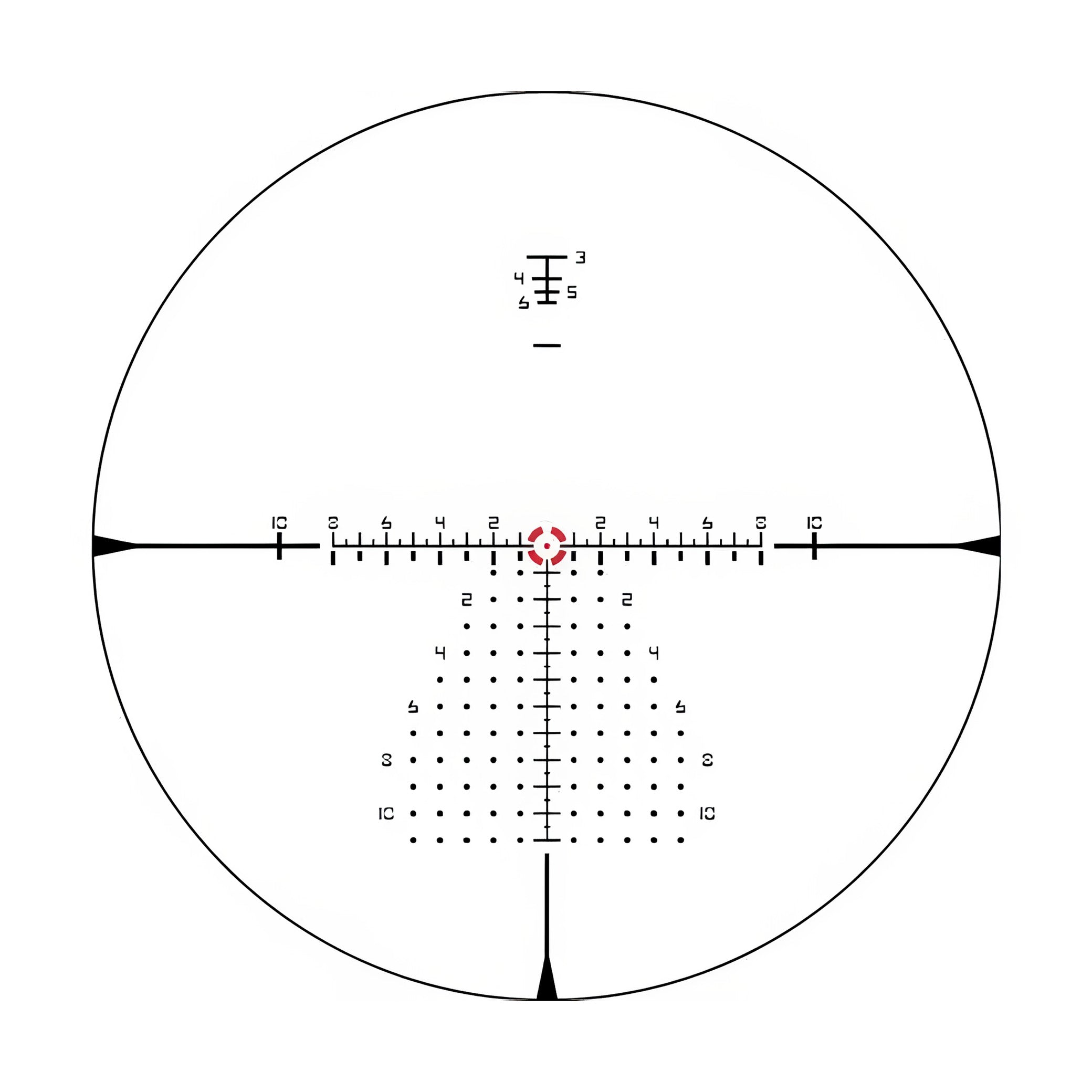

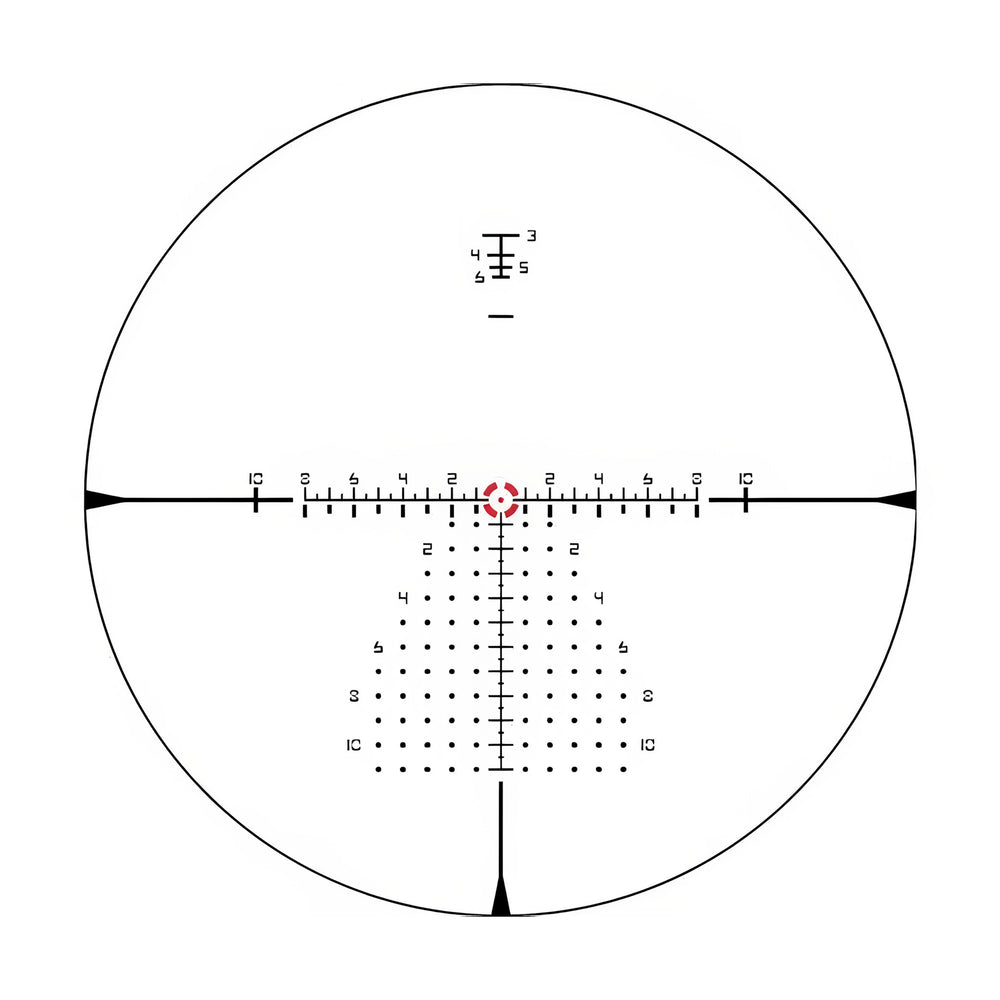

Illuminated EBR-9 Reticle
Daylight-bright illumination improves visibility in harsh lighting and maintains reticle usability in low light.
| Item ID (SKU) | AMG-11002 |
|---|---|
| Product Name | Vortex AMG 1-10x24 FFP Riflescope w/ EBR-9 MRAD Reticle |
| Magnification | 1-10x |
| Objective Lens Diameter | 24 mm |
| Focal Plane | First Focal Plane |
| Reticle | EBR-9 (MRAD), Illuminated |
| Reticle Illumination Levels | Nine daylight + Two night vision levels |
| Eye Relief | 3.3" (approximate across magnification range) |
| Field of View @ 100 Yards | 116.0' – 12.0' |
| Parallax Setting | Fixed at 250 yards |
| Turret Style | Dual Zero – Capped, Toolless Adjustment |
| Tube Size | 34 mm |
| Adjustment Graduation | 0.1 MRAD per click |
| Travel per Rotation | 10 MRAD |
| Max Elevation Adjustment | 30 MRAD |
| Max Windage Adjustment | 30 MRAD |
| Length | 8.4" |
| Weight | 18.8 oz. |
| Optical Coatings | XR™ Plus Fully Multi-Coated Lenses |
| Lens Protection | ArmorTek® Ultra-Hard Scratch-Resistant Coating |
| Construction Material | Aircraft-Grade Aluminum |
| Environmental Sealing | Argon Gas Purged, O-Ring Sealed (Fogproof, Waterproof, Shockproof) |
| Throw Lever | Integrated 120° Magnification Throw Lever |
| Included Accessories | Sunshade, Defender® Flip Caps, Lens Cloth, CR2032 Battery |
| Country of Manufacture | Made in USA with US & Global Parts |
Introducing AMG® 1-10x24 FFP Riflescope ↑
This introduction video highlights the core purpose behind the AMG® 1-10x24 platform, showcasing its exceptional optical clarity, advanced reticle design, and the engineering approach taken to build a true do-everything LPVO.
AMG® 1-10x24 FFP Riflescope | Product Overview ↑
This overview explains the full feature set of the AMG® 1-10x24, including magnification range, reticle functionality, turret system, construction quality, and the benefits of its first focal plane layout for precision shooting.
The Most Advanced LPVO Ever Made | AMG® 1-10x24 FFP Riflescope ↑
This video explores the innovation behind the AMG® 1-10x24, detailing what sets it apart in durability, clarity, daylight-bright illumination, and performance at both true 1x and extended-range magnification.
