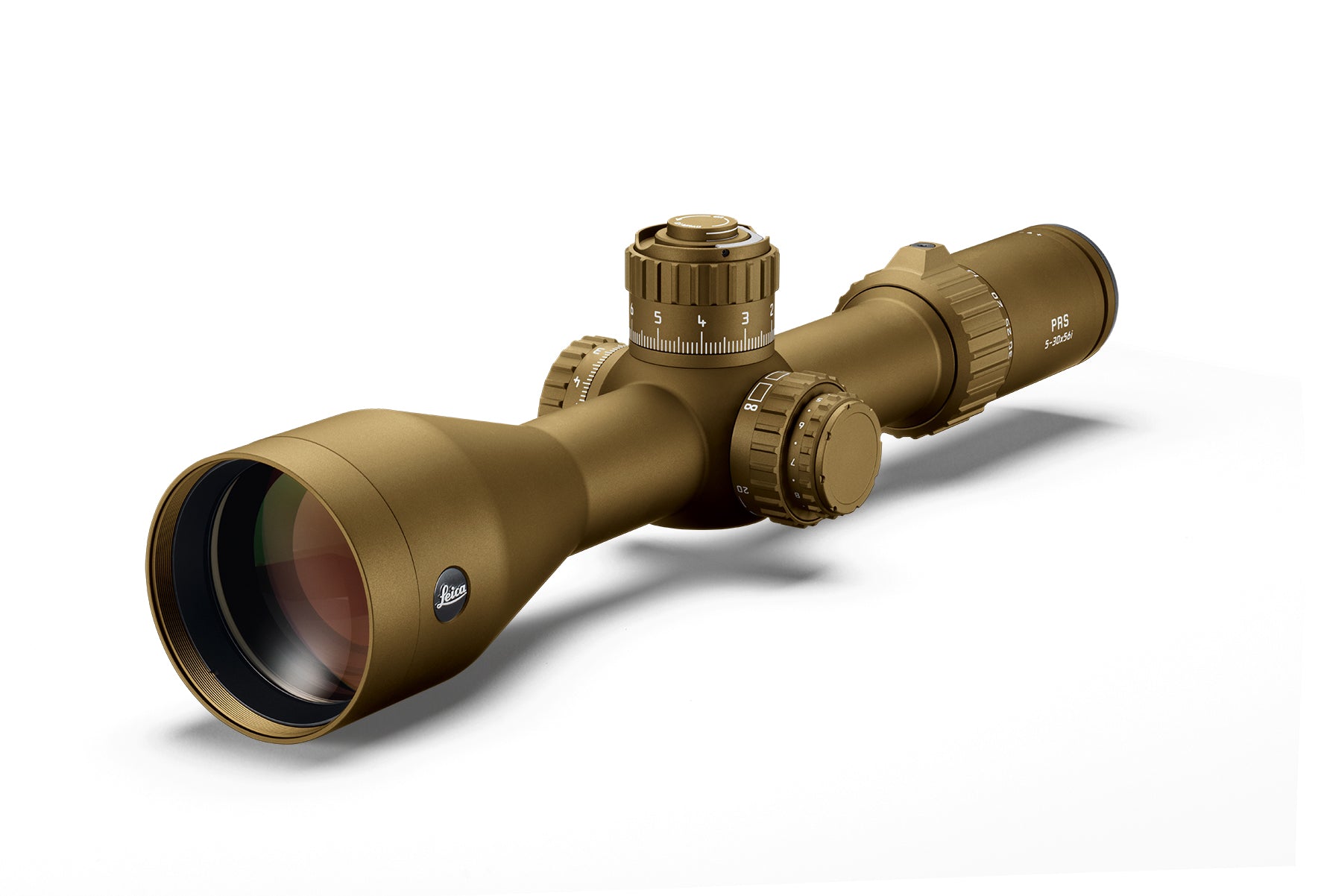

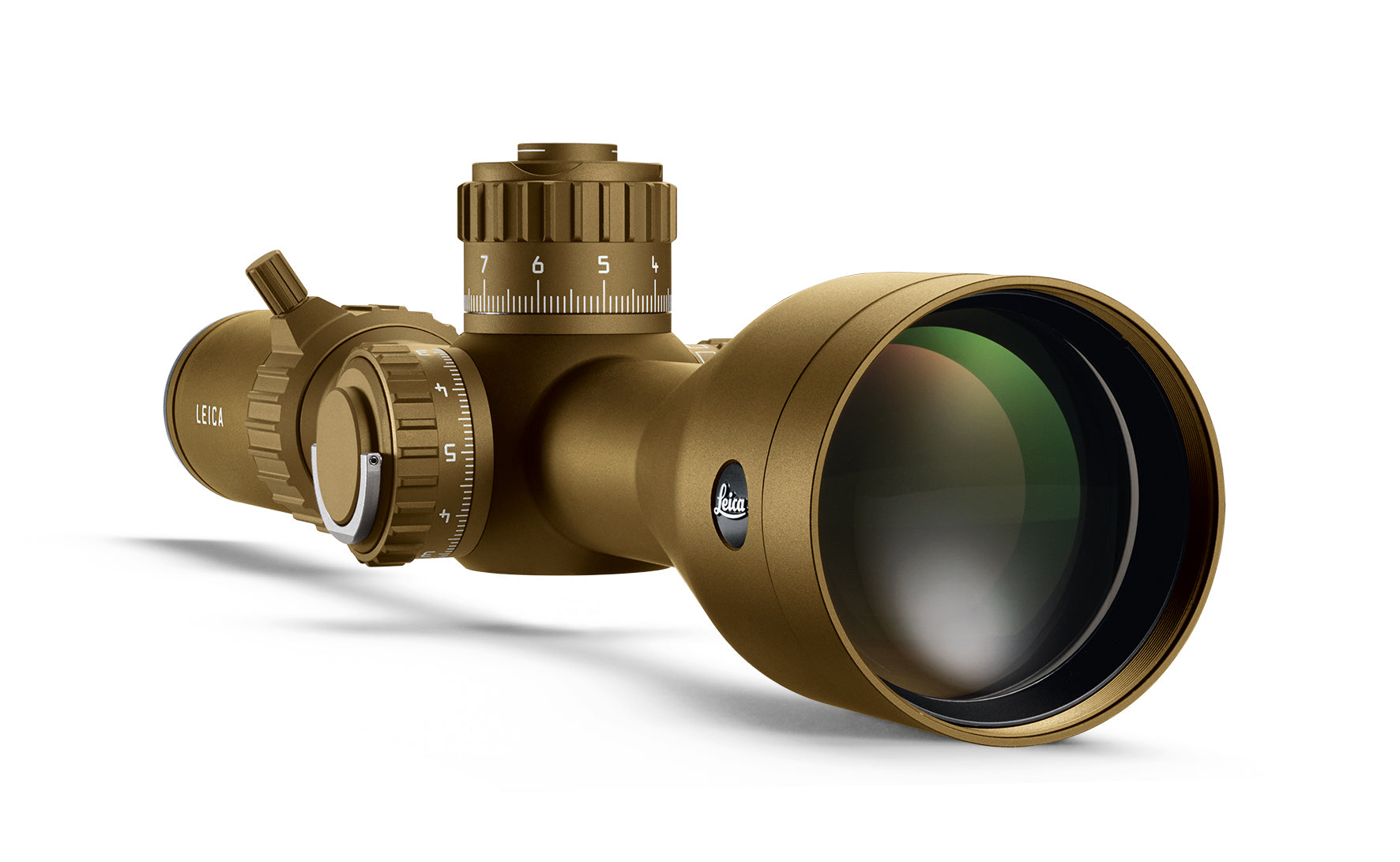

The new Leica PRS 5-30 x 56 i FDE Edition combines brilliant high-performance Leica optics,
robust mechanics, and a striking Flat Dark Earth finish. The 6 x zoom, the PRB reticle in the first
focal plane, and the multi-turn elevation turret enable precise corrections at long distances.
Color-matched accessories and white engravings create a coherent, tactically inspired design –
for full focus when every click counts.
Product: Leica PRS 5–30x56i
Reticle: PRB
Order No.: 51300
Objective Lens Diameter: 56 mm
Magnification: 5–30x
Zoom: 6x
Field of View at 5x: 8.2 m @ 100 m
Field of View at 30x: 1.3 m @ 100 m
Eye Relief: >90 mm
Exit Pupil: 9–2 mm
Parallax: Adjustable, 20 m to infinity
Diopter Compensation: –3 / +1 dpt
Lens Coating: AquaDura®
Light Transmission: >90%
Tube / Mounting Size: 34 mm
Impact Point Correction: 0.1 Mil / 0.1 mrad / 1 cm @ 100 m per click
Reticle Adjustment Range: 32 Mil elevation / 18 Mil windage
Front Lens Filter Thread: M62 × 0.6 mm
Length: 365 mm
Weight: 1,030 g
Water Resistance: Waterproof to 4 m, nitrogen filled
Focal Plane: First focal plane
Reticle Illumination: Dot / scale
Automatic Switch-Off: 4 hours
Available Reticles / Order Nos.: L-4a — 51100; Ballistic — 51200; PRB — 51300
Package Includes: Sunshade, tools, throw lever, cleaning tissue, battery
