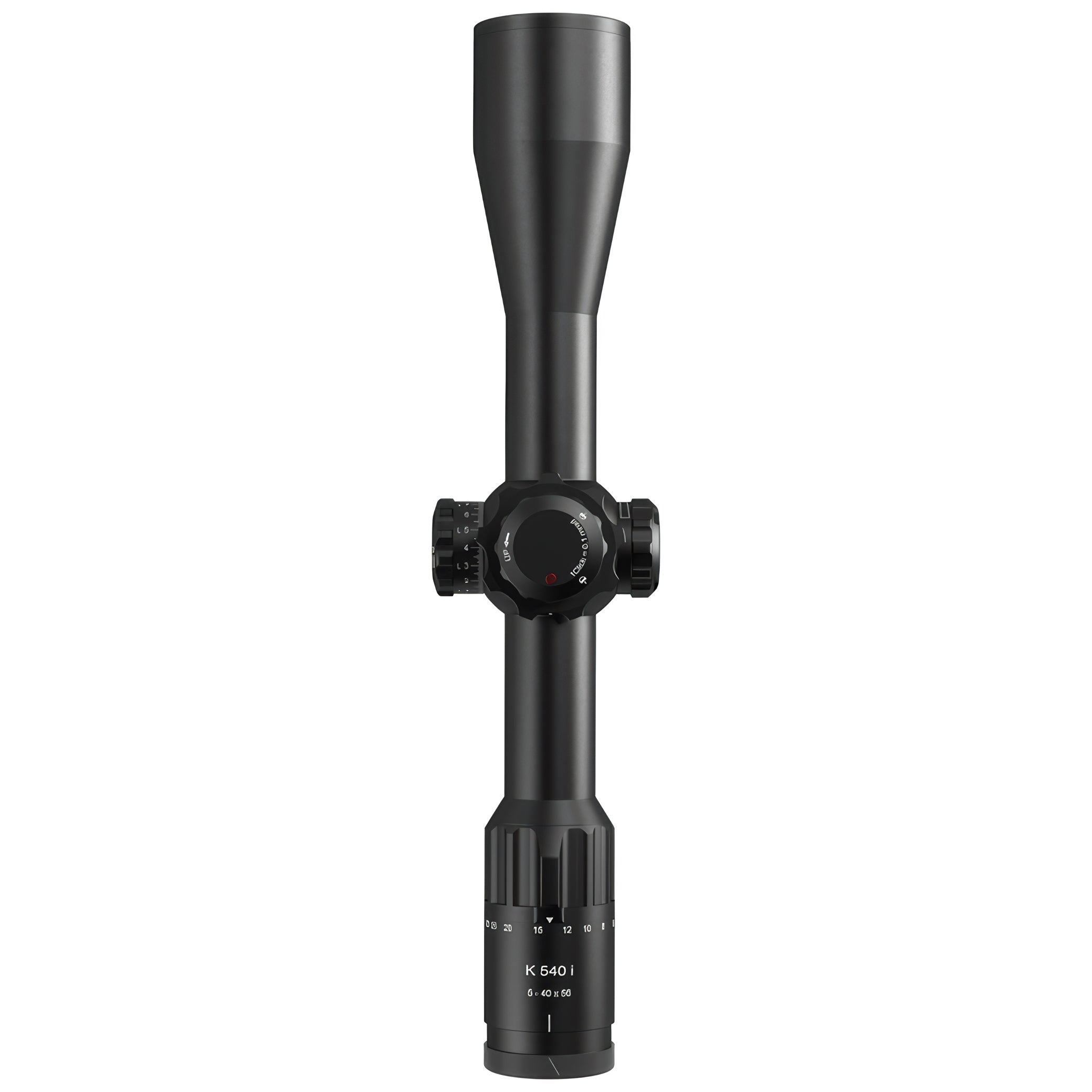

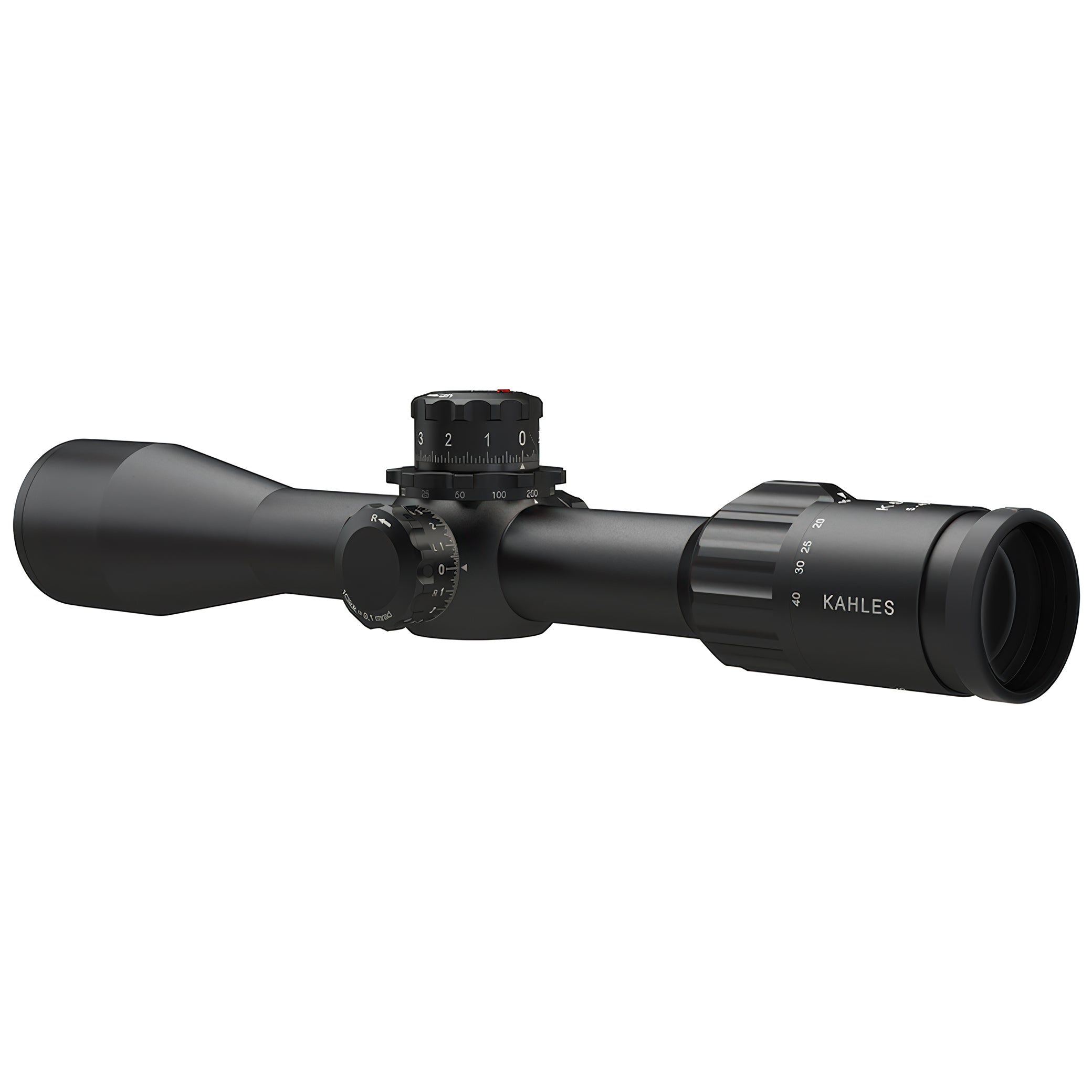

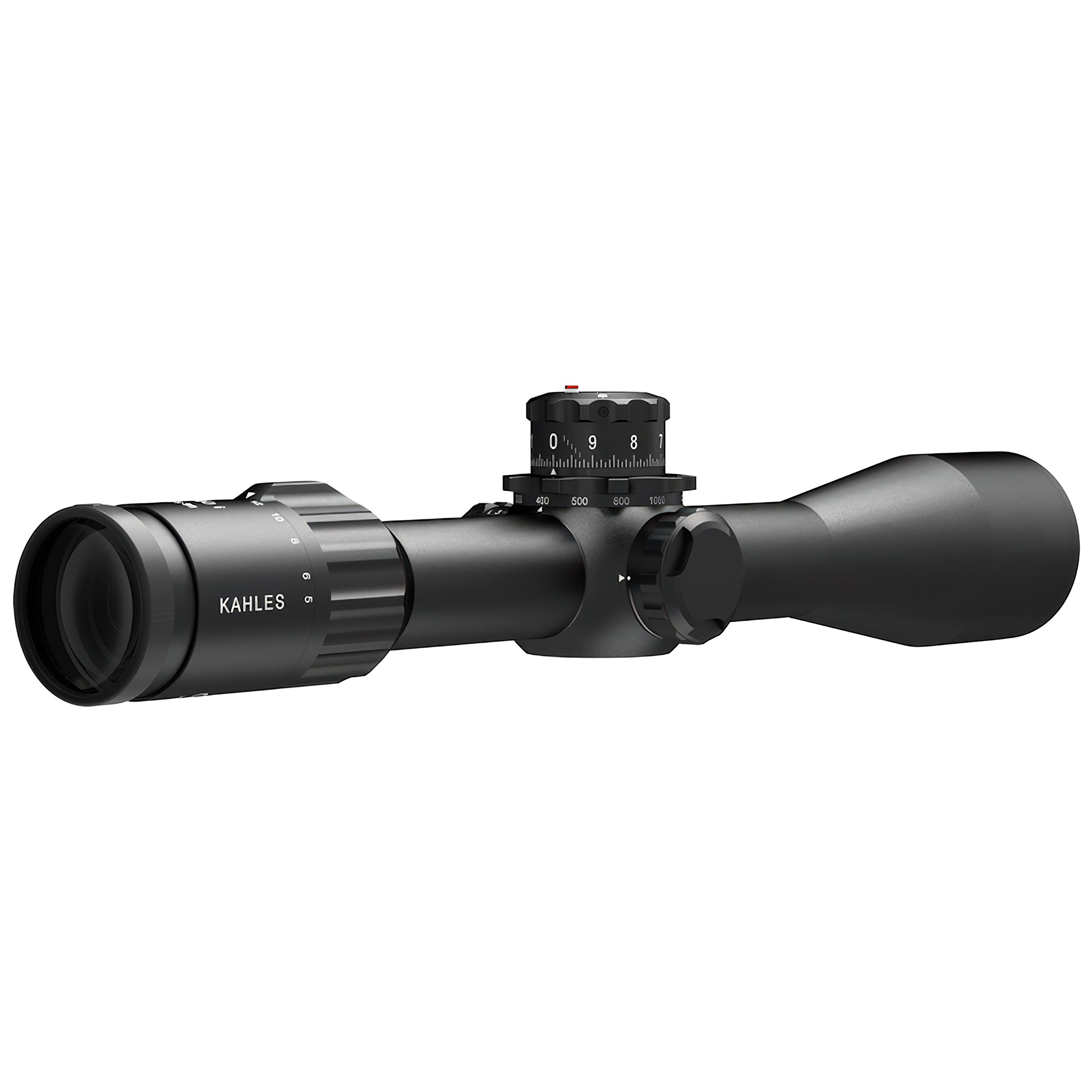

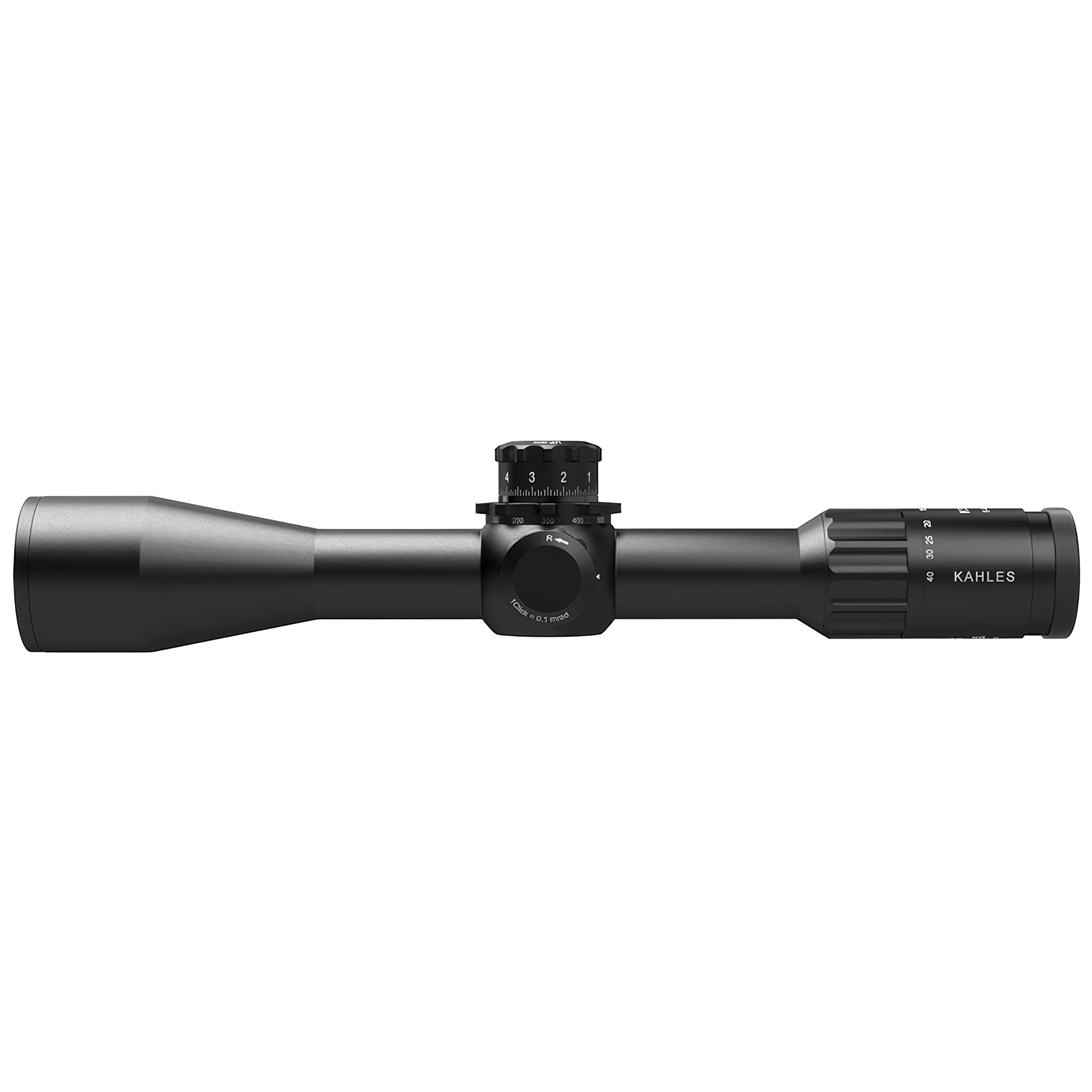

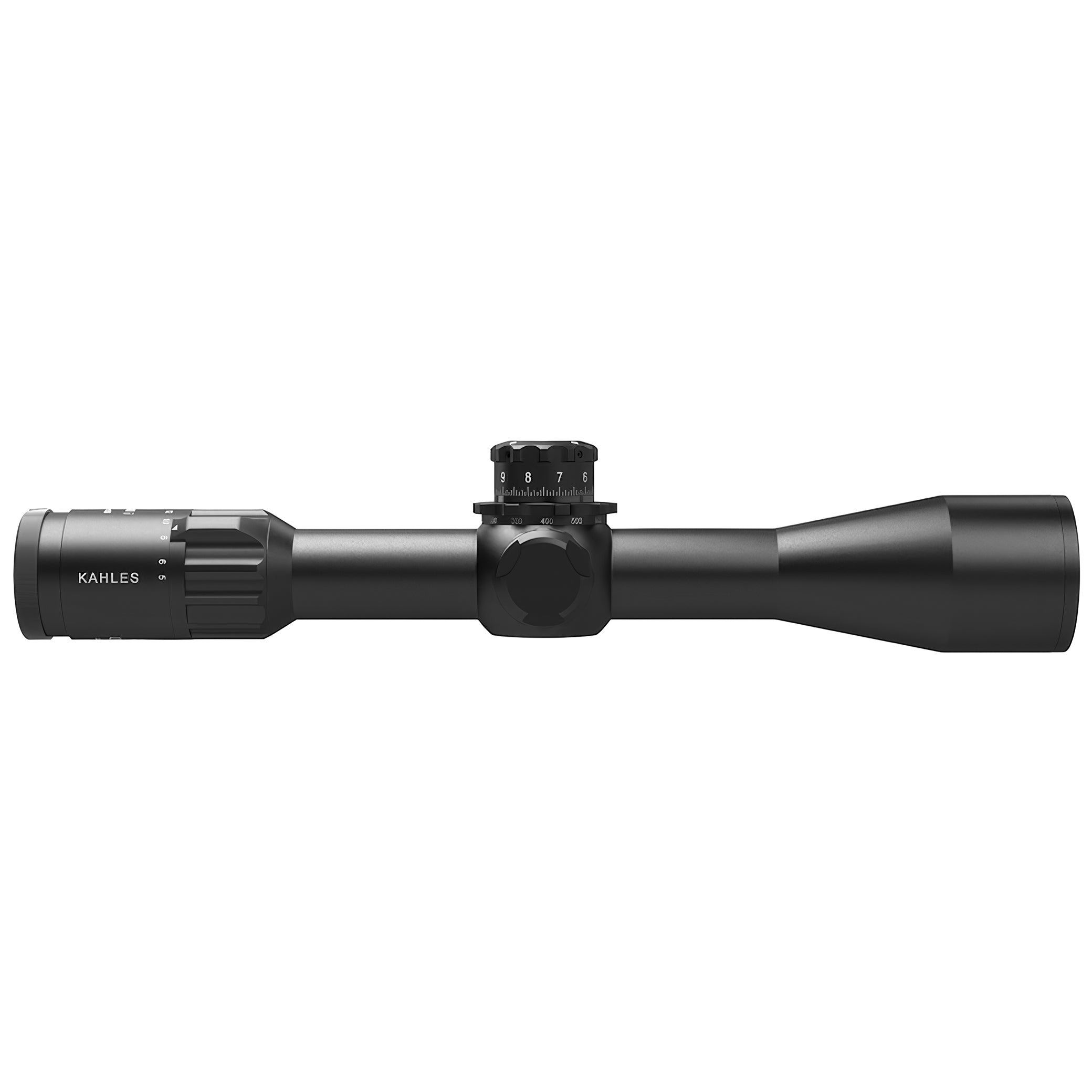

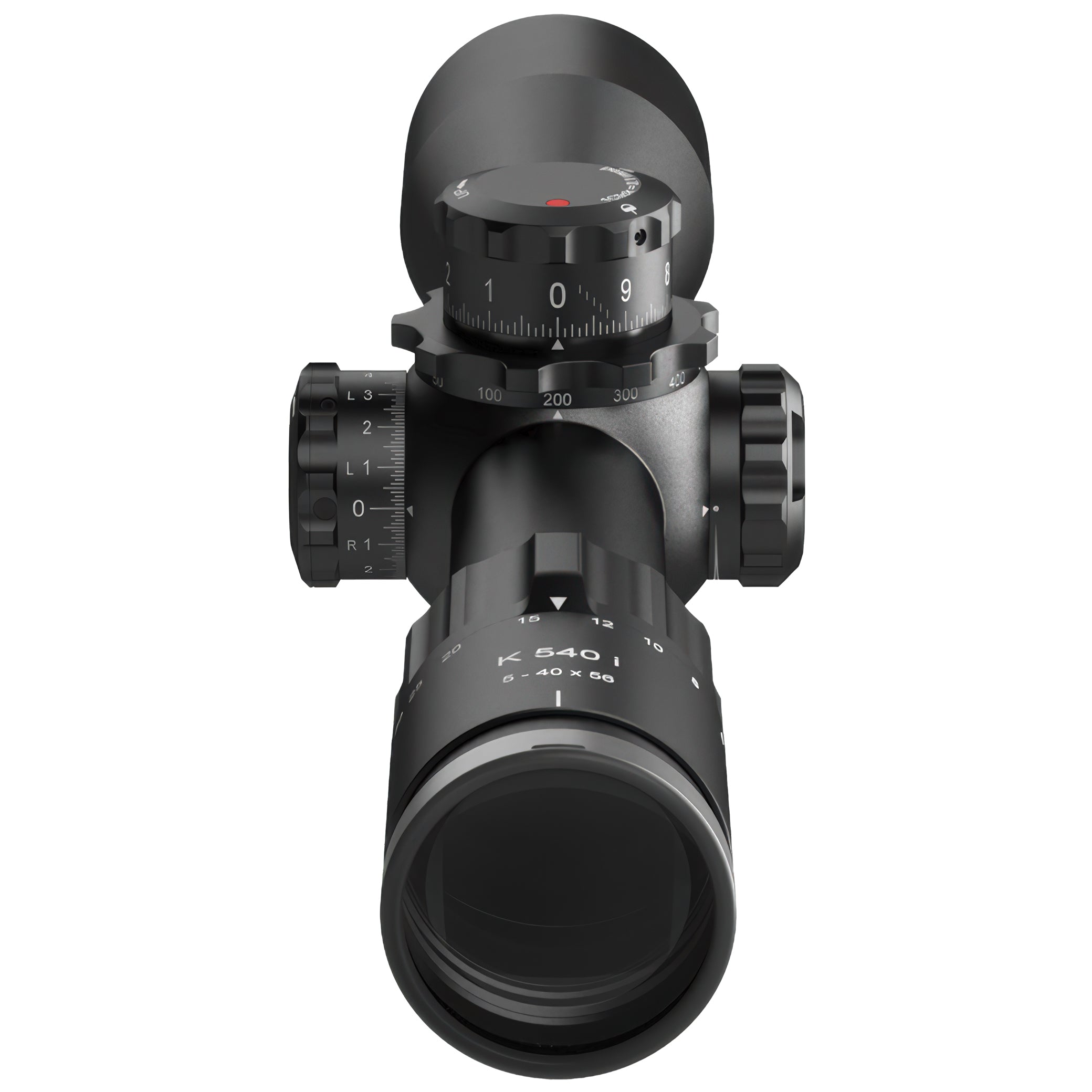

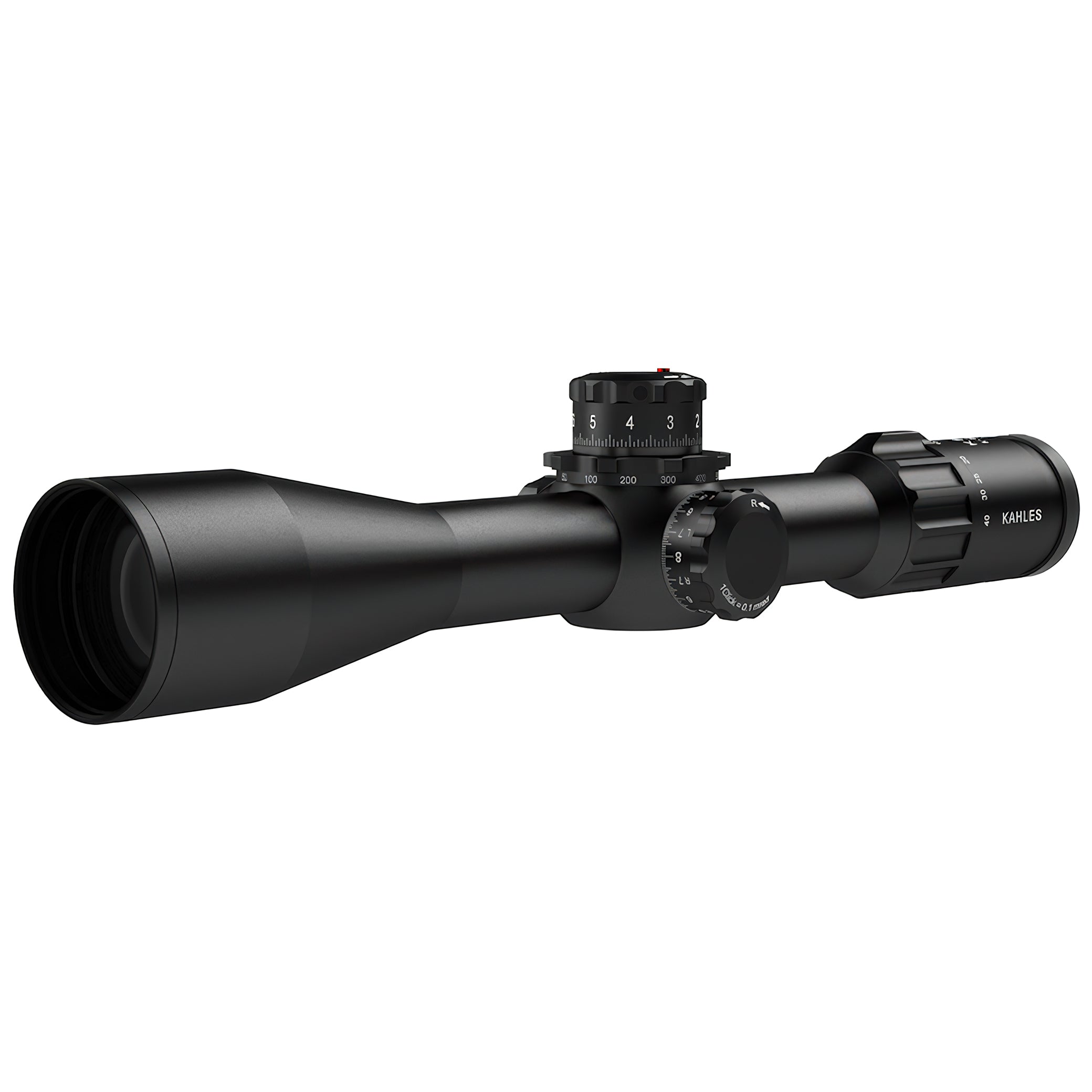

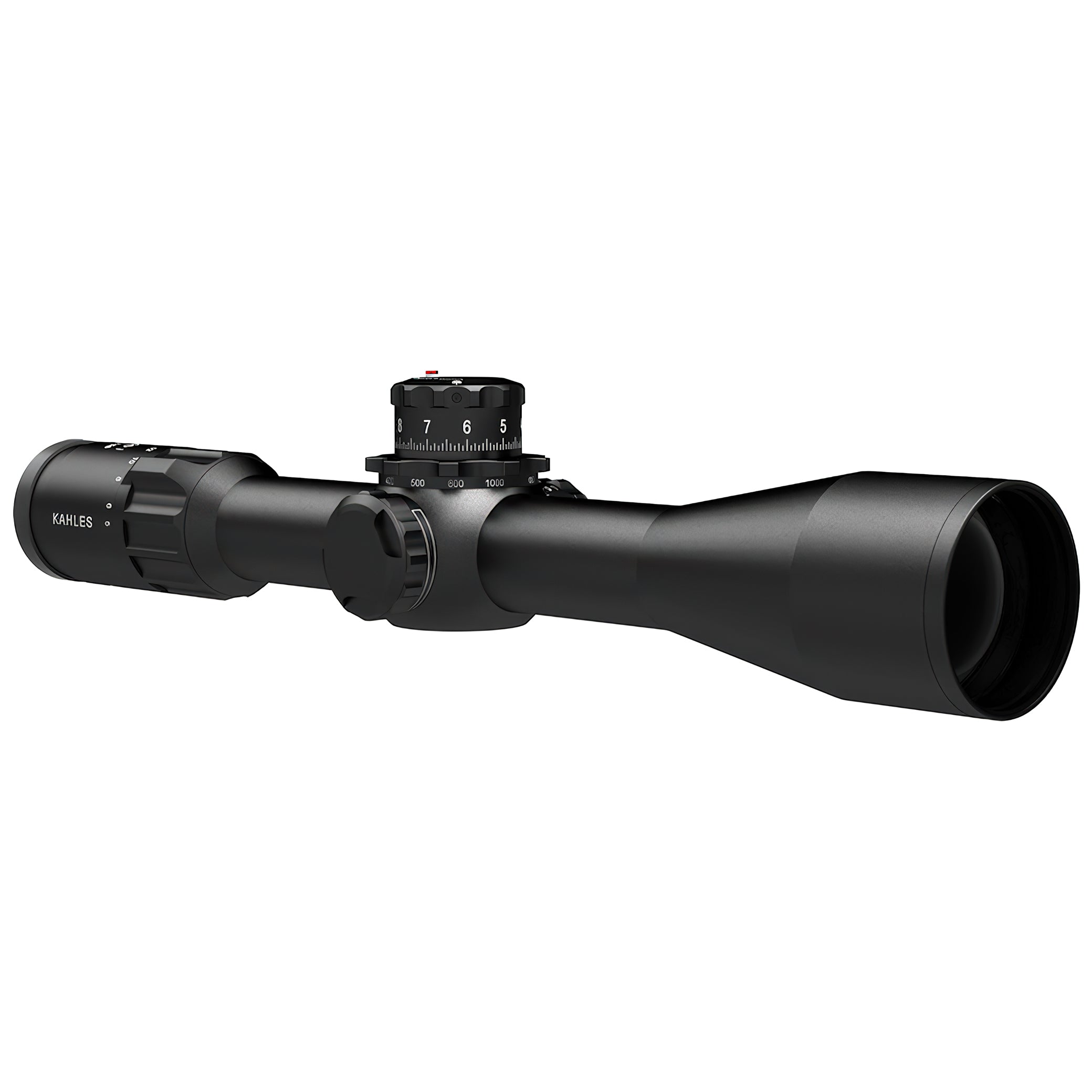

Kahles K540i 5-40x56i DLR Illuminated Riflescope with SKMR4+ Reticle- 10723

Engineered for elite long-range shooters, the Kahles K 5-40x56i DLR delivers exceptional performance through a wide 8x zoom range and crystal-clear image quality. Designed to enhance both speed and accuracy, this scope combines a massive 40% wider field of view with edge-to-edge clarity, empowering competitive...
Vendor: Kahles
SKU: 10723
Barcode: 9008729007233
R 90,999.01
R 90,999.01
Kahles K540i 5-40x56i DLR Illuminated Riflescope with SKMR4+ Reticle- 10723

Kahles K540i 5-40x56i DLR Illuminated Riflescope with SKMR4+ Reticle- 10723

R 90,999.01

Kahles K540i 5-40x56i DLR Illuminated Riflescope with SKMR4+ Reticle- 10723

R 90,999.01

Engineered for elite long-range shooters, the Kahles K 5-40x56i DLR delivers exceptional performance through a wide 8x zoom range and crystal-clear image quality. Designed to enhance both speed and accuracy, this scope combines a massive 40% wider field of view with edge-to-edge clarity, empowering competitive and tactical marksmen alike.

With its forgiving eyebox even at maximum 40x magnification, shooters can maintain consistent sight alignment and reduce eye strain during extended sessions. The advanced parallax and windage controls, integrated into the turret system, allow for seamless adjustments without breaking focus — ideal for dynamic long-range engagements.

Magnification 5-40
Objective Lens Diameter 56 mm
Exit Pupil 1.4 - 7.7 mm
Eye Relief 92 mm
Field of View (m/100m) 10.2 - 1.3
Diopter Compensation +2 / -3 dpt
Parallax Adjustment 20 m - ∞
Adjustment Range (E/W @100m) 2.9 / 1.2 m
Impact Correction Per Click 0.1 MRAD
Turret Type DLR-Elevation Incl. EasyRead
Tube Diameter 36 mm

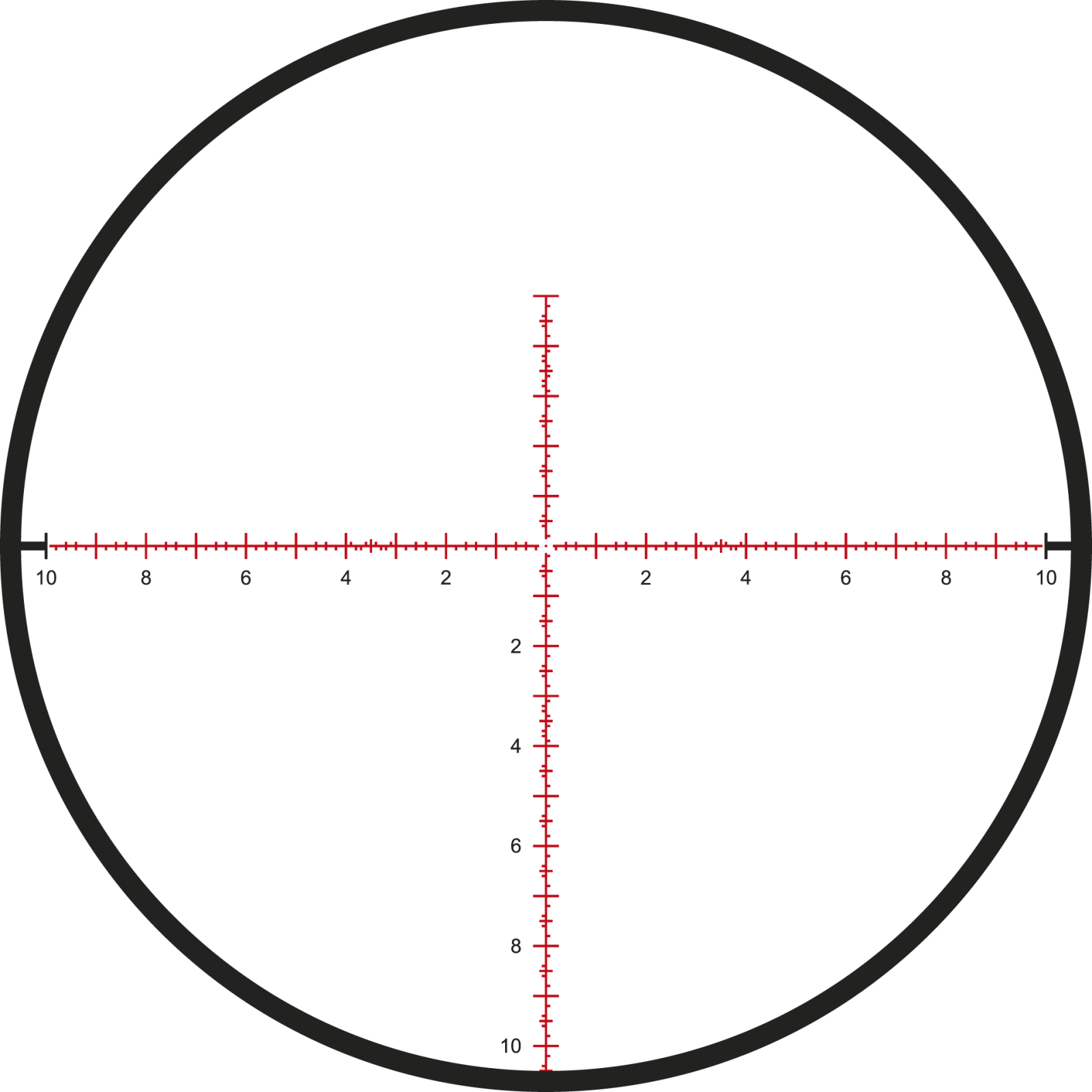

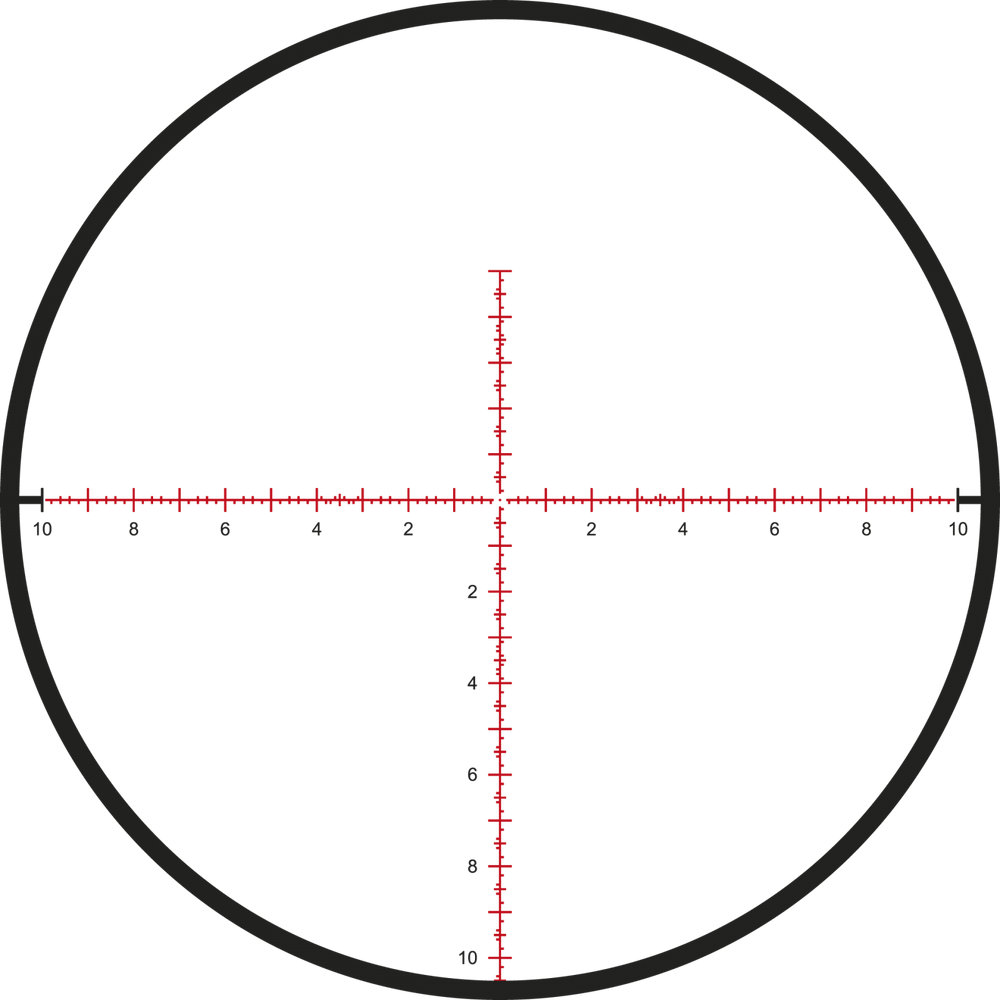

Reticle SKMR+, SKMR4+
Reticle Focal Plane 1st
Illuminated Reticle Yes
Twilight Factor (DIN 58388) 13.9 - 47.3
Windage Left / Right
Length 408 mm
Weight 1110 g
Battery Type CR2032
Warranty 10 years (2 years electronics)
Objective Filter Thread M58 x 0.75
Accessories (Optional) Bubble Level, Flip-Up Cover, Killflash ARD, Parallax Spinner, Sunshield, Throw Lever

40% Wider Field of View

Revolutionary optical design delivers a 40% wider field of view for improved situational awareness and faster target acquisition.

Designed for professional shooters, the K 540i combines unmatched visibility with class-leading edge-to-edge clarity, enabling precision at every distance.



8x Zoom with Maximum Clarity

Achieve flawless detail across the entire magnification range with premium 8x zoom capabilities.

From 5x to 40x, image fidelity and sharpness are consistently maintained for both close and extreme-range shooting.



Comfortable Eyebox at 40X

Experience an exceptionally forgiving eyebox, even at maximum 40X magnification.

Enjoy reduced eye strain and consistent sight picture, crucial for long sessions of precision shooting.



Patented Parallax and Windage Control

Parallax adjustment is integrated into the elevation turret and offers intuitive control on either side for windage.

A patented mechanism enhances adjustment speed and tracking accuracy, optimized for competitive and tactical use.



DLR “EasyRead” Turret System

The DLR model features the “EasyRead” elevation turret, specifically designed for dynamic long-range shooting competitions.

It ensures instant turret reference, minimizing read errors under pressure and enabling rapid adjustments.



Precision Click Adjustments

100 precise clicks per rotation ensure consistent and repeatable accuracy with clearly tactile feedback.

This mechanical integrity is designed to meet the demands of professional shooters and long-range specialists.



Illuminated First Focal Plane Reticle

The precise illuminated reticle is located in the first focal plane for consistent subtensions at all magnification levels.

This provides optimal holdover, ranging, and windage correction, whether you're at 5x or pushing 40x.
