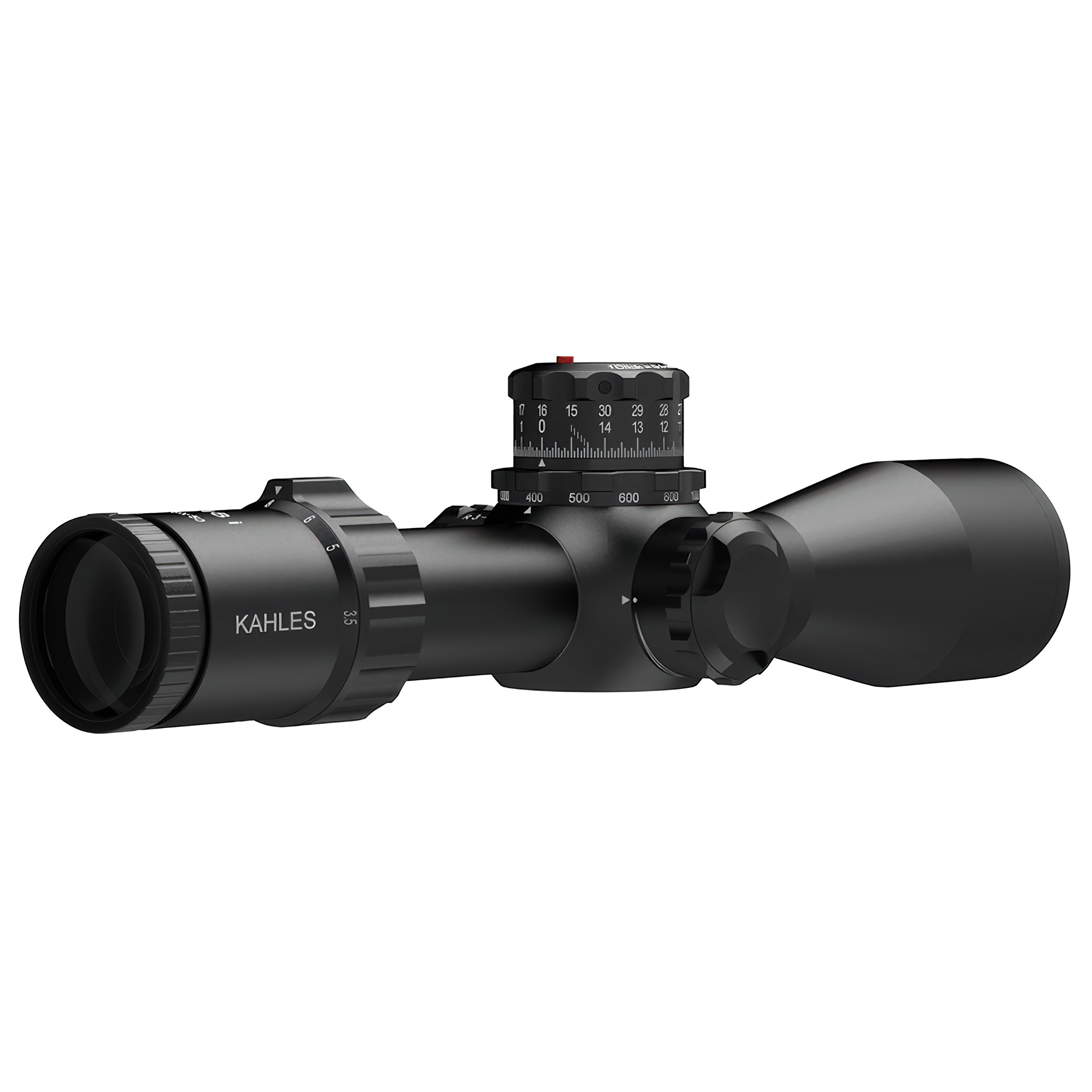

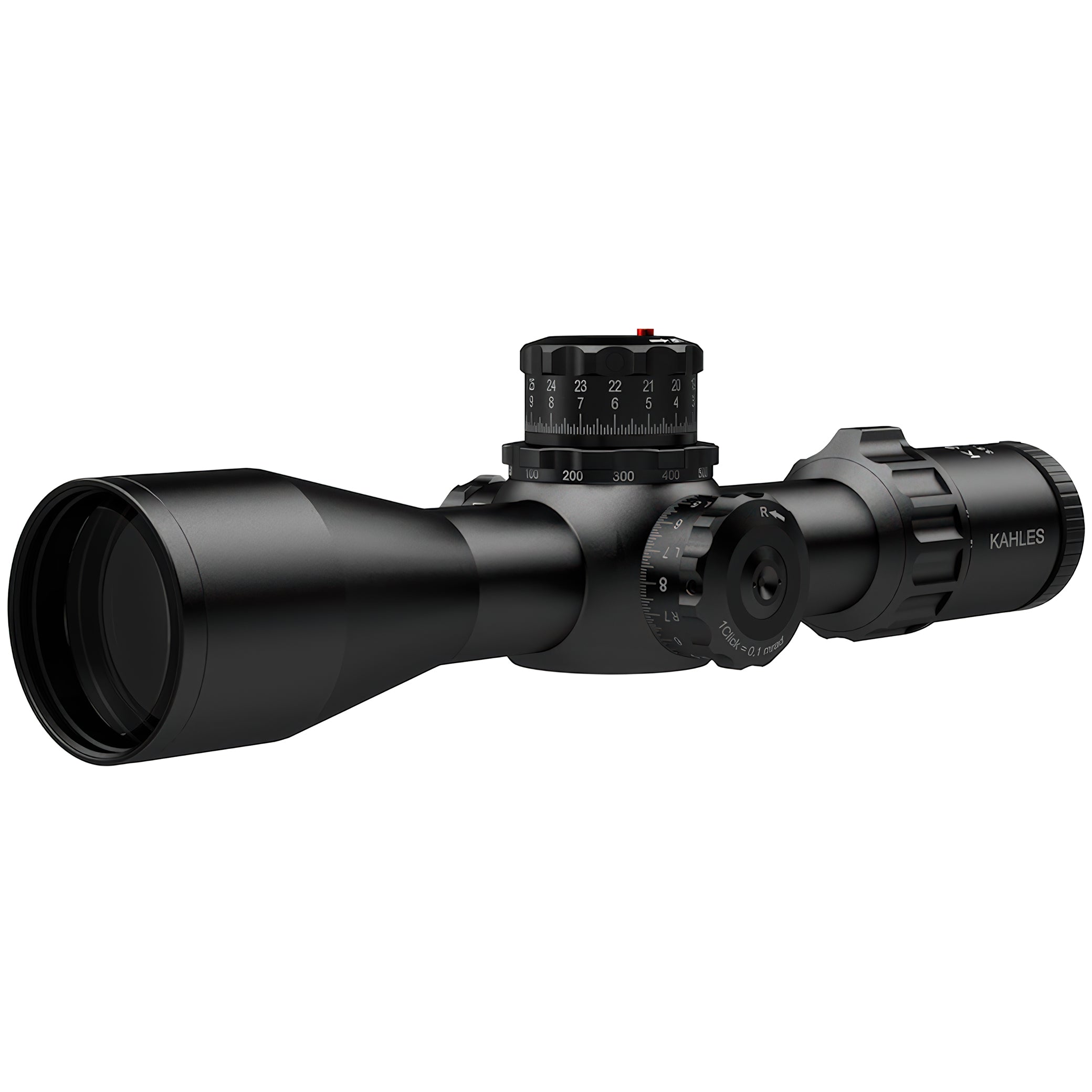

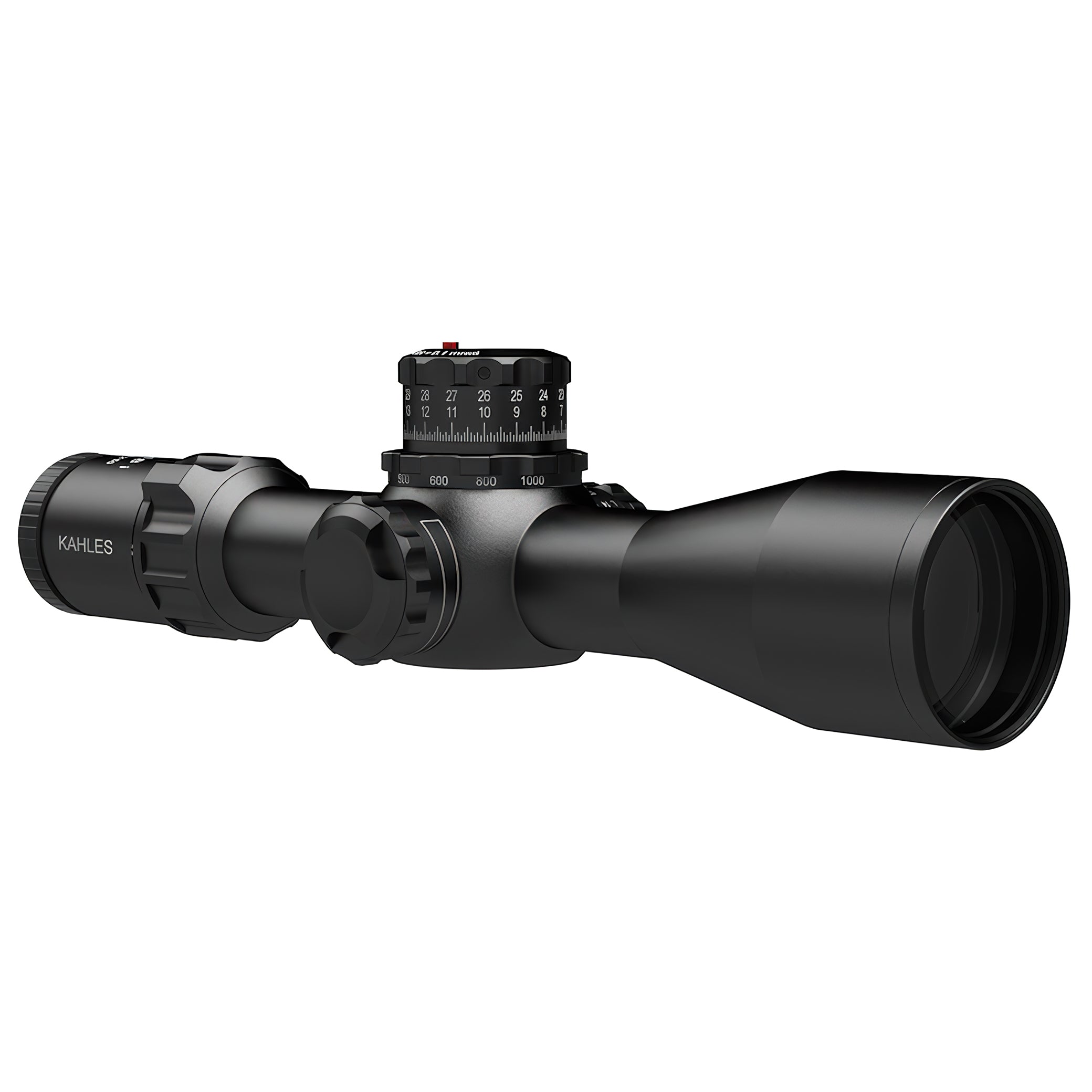

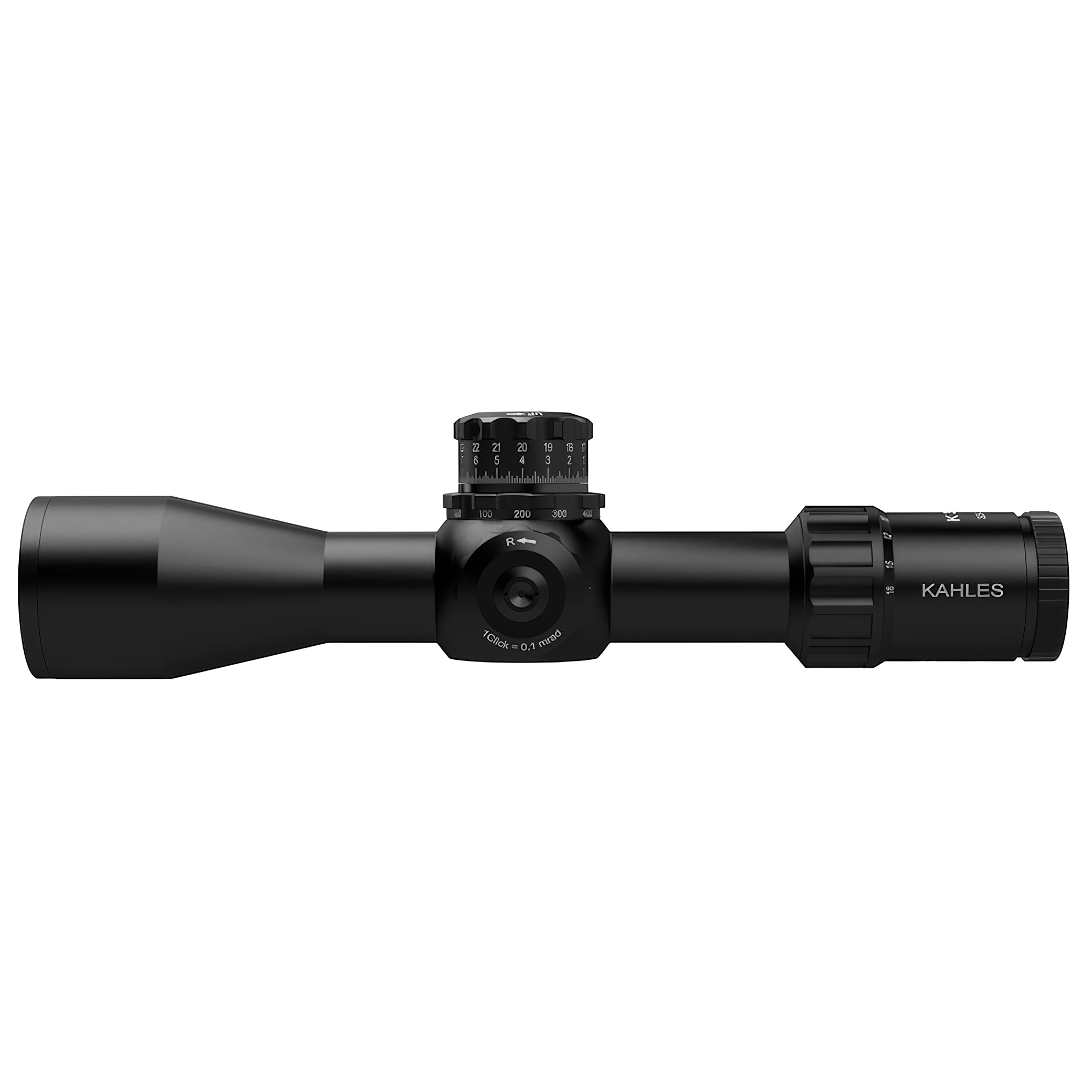

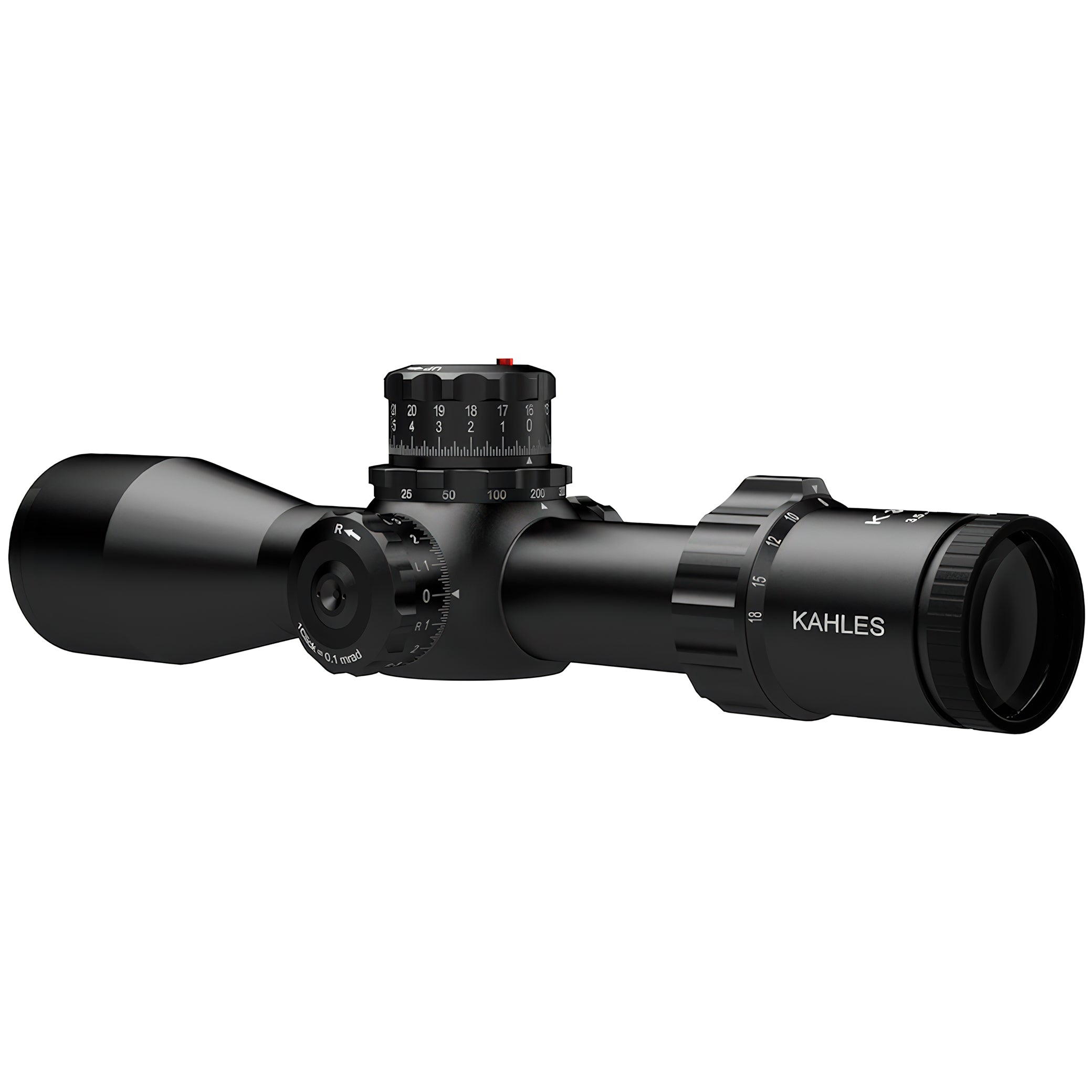

Kahles K328i 3,5-18x50 Illuminated Riflescope with MOAK Reticle- 10658

Engineered for peak performance in a compact form, the Kahles K318i 3.5–18x50i riflescope offers outstanding optical clarity, tactical functionality, and ergonomic excellence. Designed for professional marksmen, it integrates precise illuminated reticles in the first focal plane, providing unparalleled accuracy at any magnification. Featuring patented TWIST...
Vendor: Kahles
SKU: 10658
Barcode: 9008729006588
R 69,999.01
R 69,999.01
Kahles K328i 3,5-18x50 Illuminated Riflescope with MOAK Reticle- 10658

Kahles K328i 3,5-18x50 Illuminated Riflescope with MOAK Reticle- 10658

R 69,999.01

Kahles K328i 3,5-18x50 Illuminated Riflescope with MOAK Reticle- 10658

R 69,999.01

Engineered for peak performance in a compact form, the Kahles K318i 3.5–18x50i riflescope offers outstanding optical clarity, tactical functionality, and ergonomic excellence. Designed for professional marksmen, it integrates precise illuminated reticles in the first focal plane, providing unparalleled accuracy at any magnification.

Featuring patented TWIST GUARD windage protection and a mechanical Zero Stop, the K318i ensures consistent, repeatable results even in the most demanding conditions. Its 34 mm tube and ultrashort body deliver maximum robustness without compromising on image quality or mechanical reliability, making it ideal for both competitive shooting and tactical operations.

Product Name K318i 3.5–18x50i Riflescope
Magnification 3.5 – 18
Objective Lens Diameter 50 mm
Tube Size 34 mm
Reticle SKMR4
Reticle Focal Plane 1st
Turret Type Exposed tactical with Zero Stop
Illuminated Reticle Yes
Ballistic Turret Yes
Digital Rangefinder No
Mount Type 34 mm rings (not included)
Eye Relief 92 mm
Exit Pupil 6.9 – 2.8 mm
Field of View 9.3 – 2.0 m / 100 m
Impact Correction Per Click 0.1 MRAD / ¼ MOA
Adjustment Range (E/W) 3.0 / 1.5 m / 100 m
Parallax Adjustment 25 m to ∞
Length 313 mm
Weight 940 g
Warranty 10 years

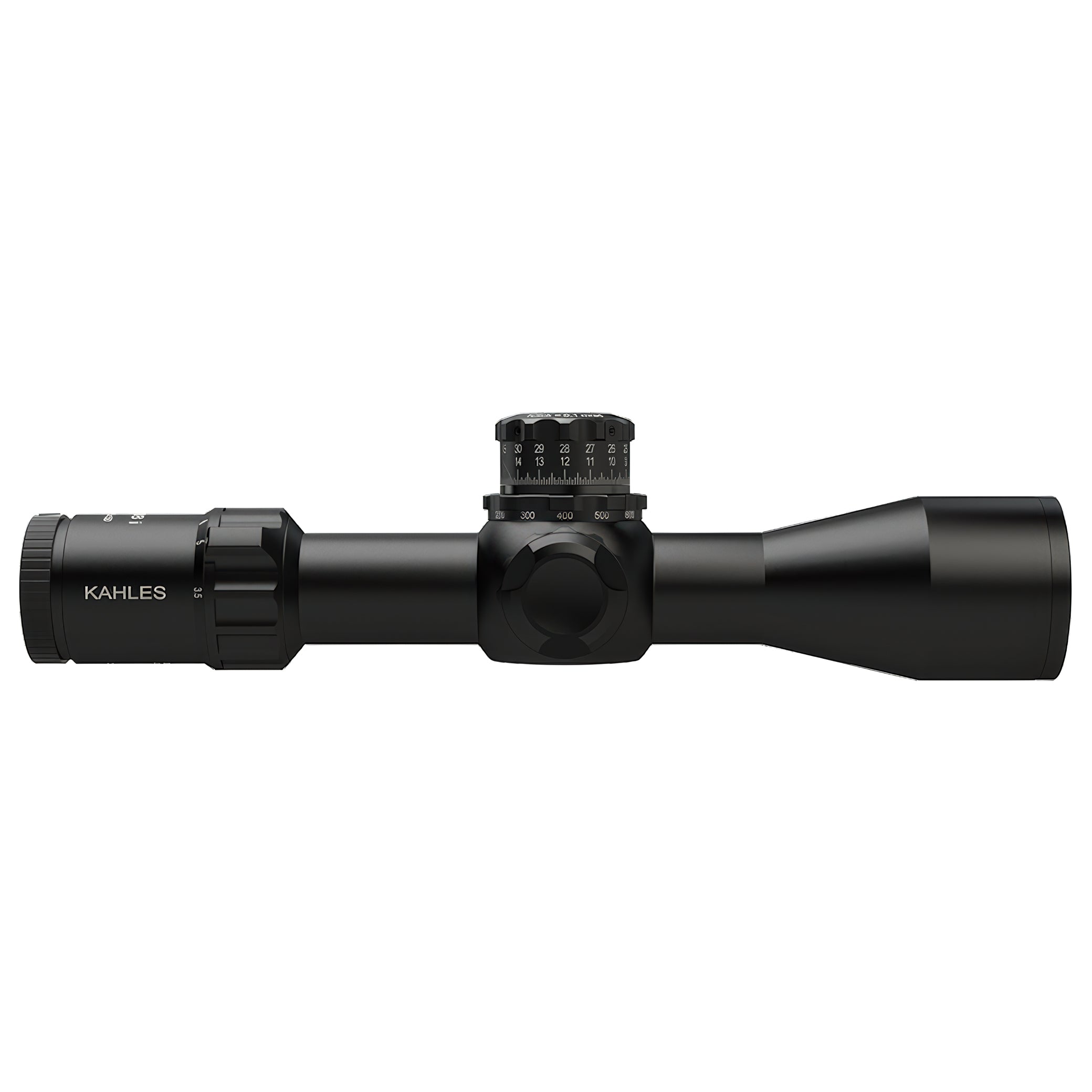

ULTRASHORT PRECISION TOOL

The K318i means optical and mechanical perfection packed into an ultrashort design. With precise illuminated reticles in 1st focal plane, sharply defined throughout the entire magnification range and the unique TWIST GUARD windage.

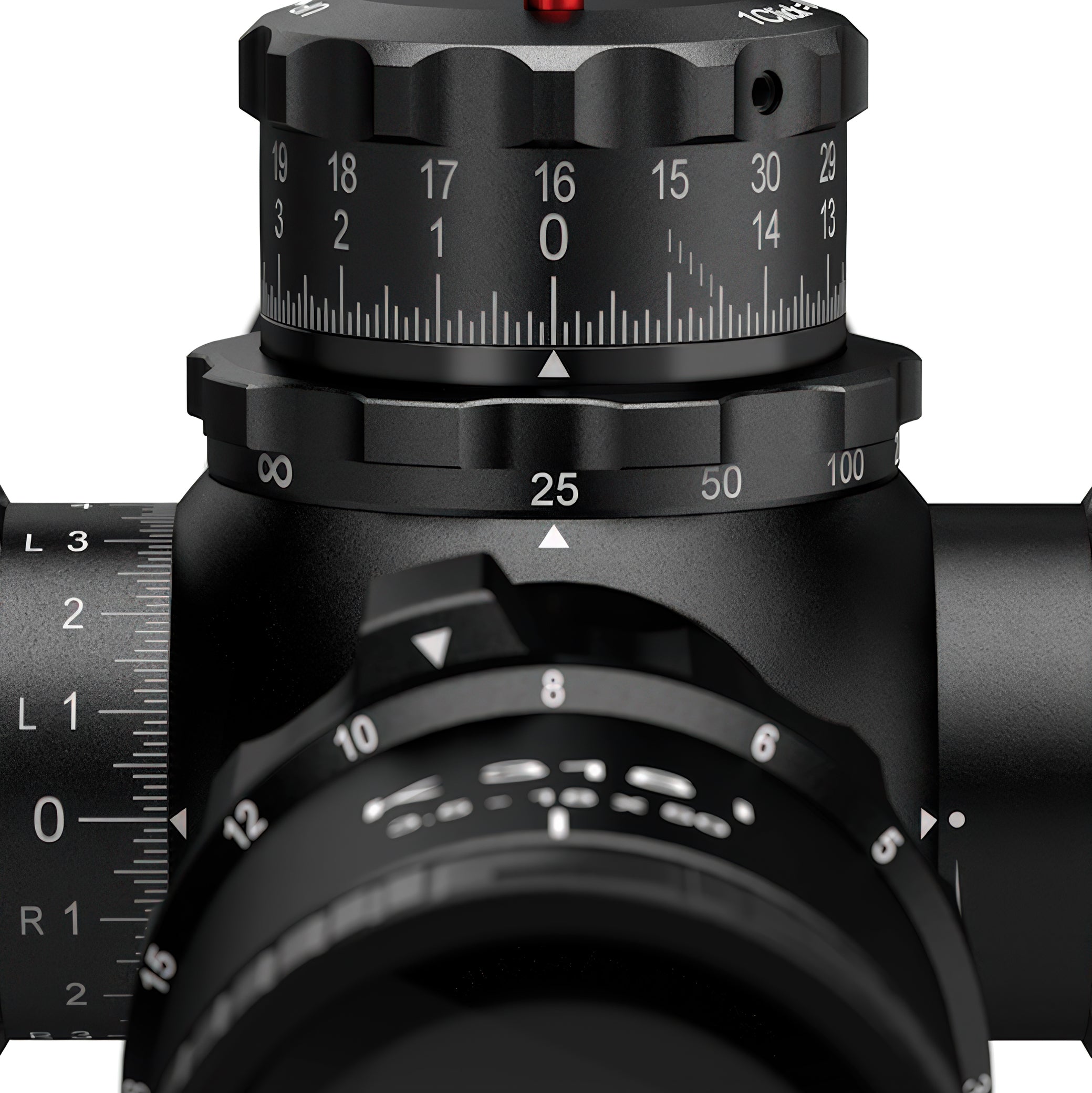

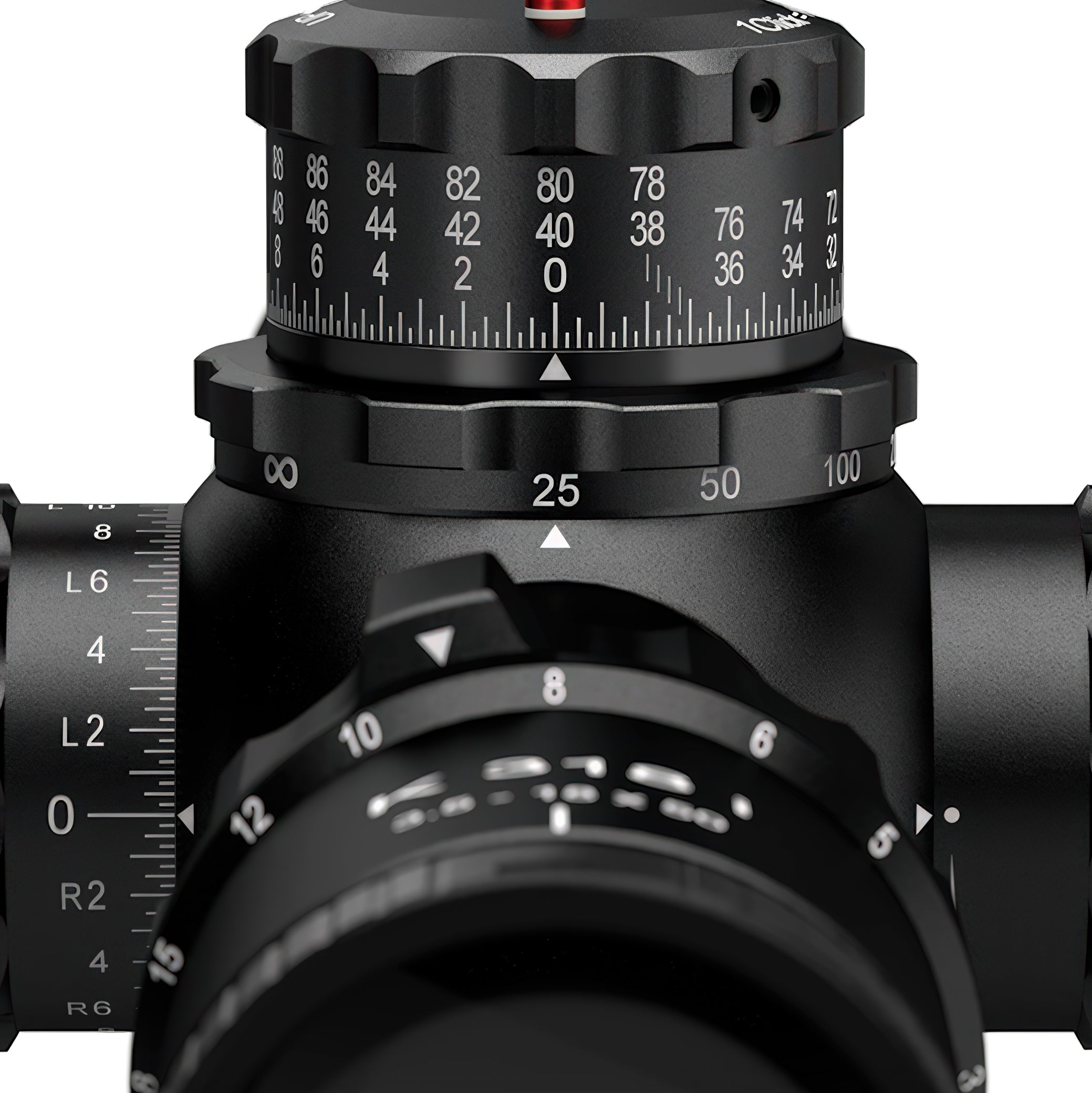

Ultra-Precise Click Adjustments

Depending on the model, the turret clicks are in either MOA or MRAD. Each ¼ MOA click adjusts point of impact by 0.741 cm at 100 meters, while each 0.1 MRAD click adjusts impact by exactly 1 cm at 100 meters. This provides precise, measurable adjustments ideal for long-range shooting.



Reliable Zero Stop Function

The mechanical Zero Stop system allows you to return to your original zero position quickly and intuitively, even under low light or extreme conditions. It can be set 3 or 4 clicks below the zero point to suit individual needs.

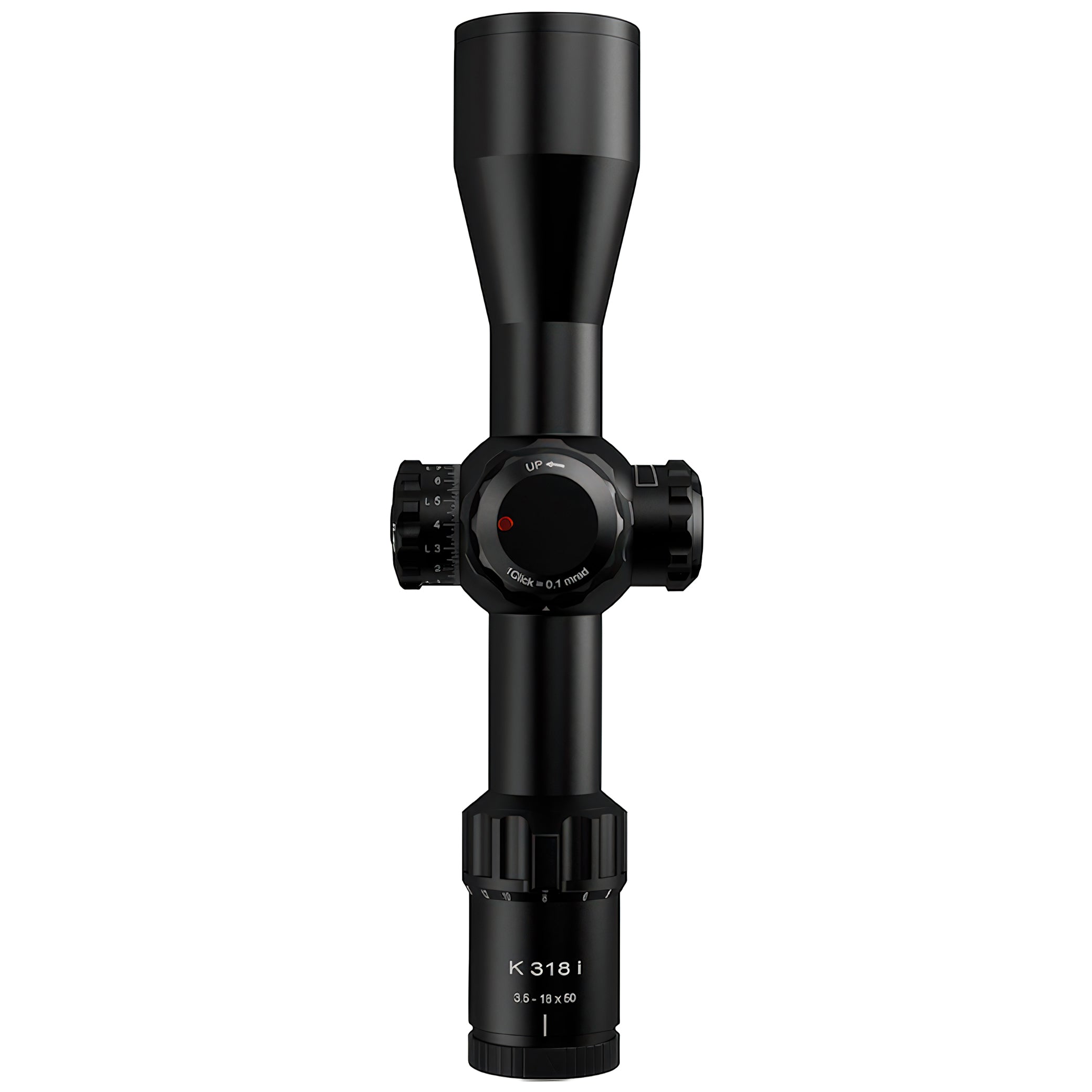

TWIST GUARD Windage

The patented TWIST GUARD windage design uses a freely rotating end cover to prevent accidental movement. This protects the windage setting while eliminating the need for locking mechanisms, enabling fast, unhindered operation.

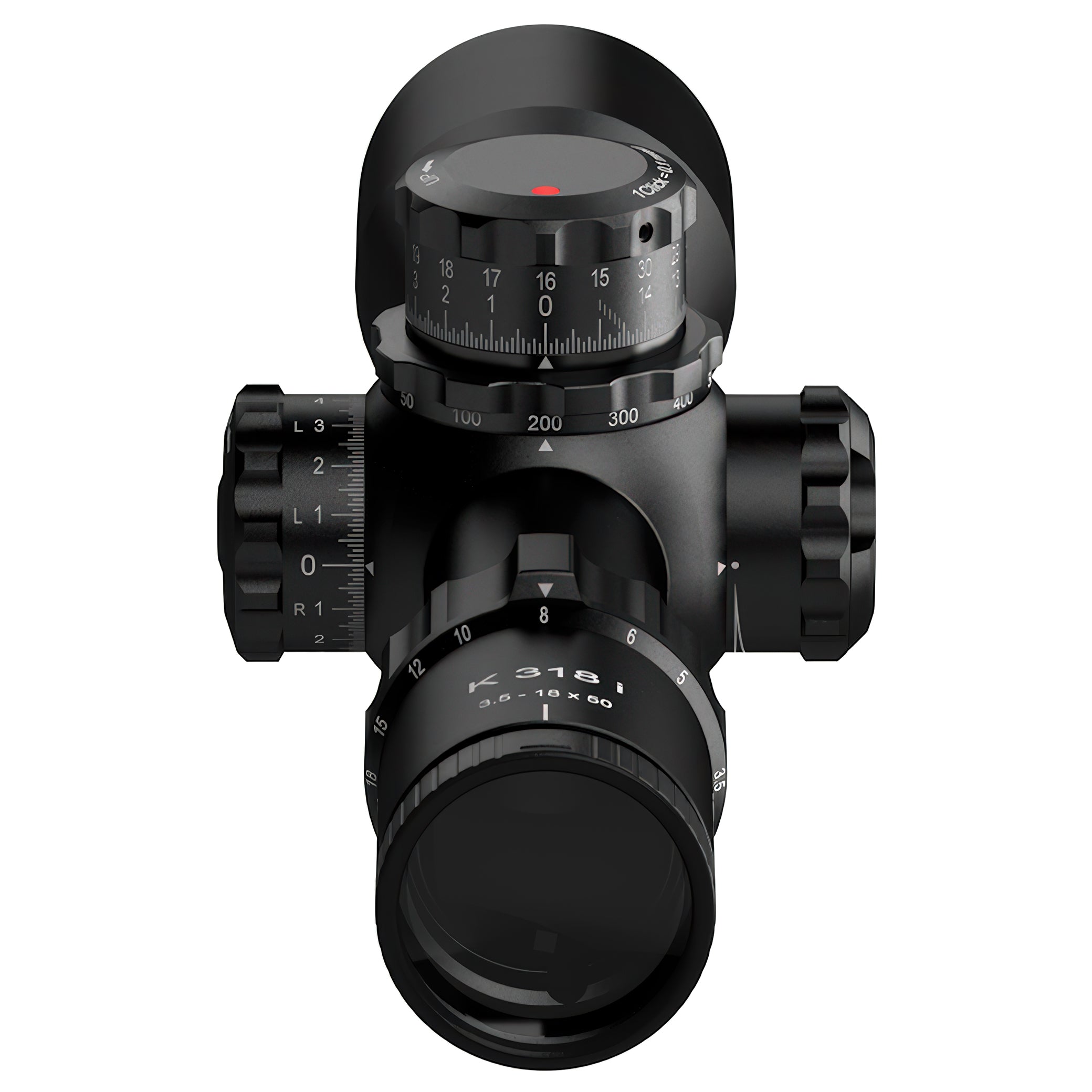

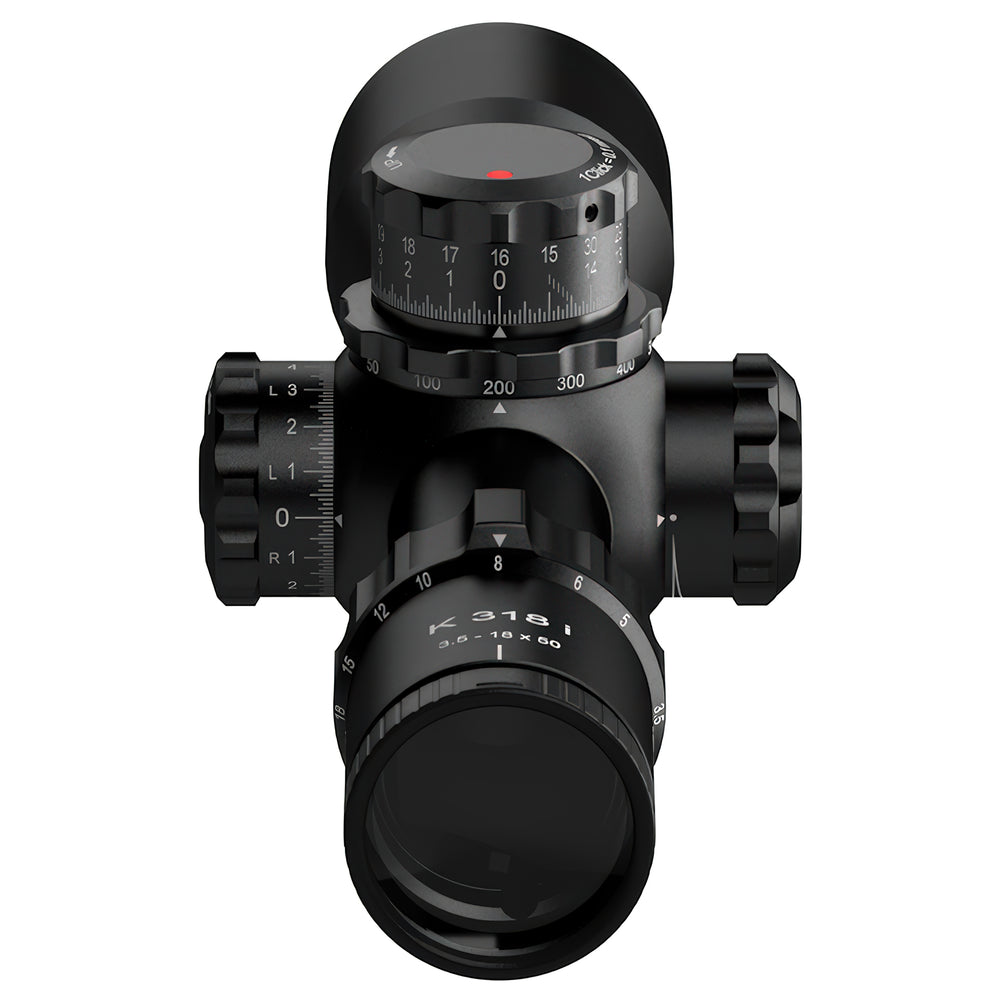

Superior Handling and Ergonomics

With the patented central turret arrangement and intuitive control layout, both right- and left-handed users can operate the riflescope efficiently without shifting position. The parallax wheel is conveniently integrated into the elevation turret.

Windage controls are ergonomically placed on the left for right-handed users and on the right for left-handed shooters, providing optimal accessibility for all.



First Focal Plane Reticle

The illuminated reticle is located in the first focal plane. As magnification changes, the reticle scales accordingly—keeping spacing and range estimation accurate throughout the zoom range.



Optimized Design for Tactical Use

The K318i offers a compact body with a 34 mm main tube, which is the tactical standard. With a 3.5–18x magnification range and a 50 mm objective lens, it delivers a wide field of view and outstanding image clarity in a short, lightweight format.
